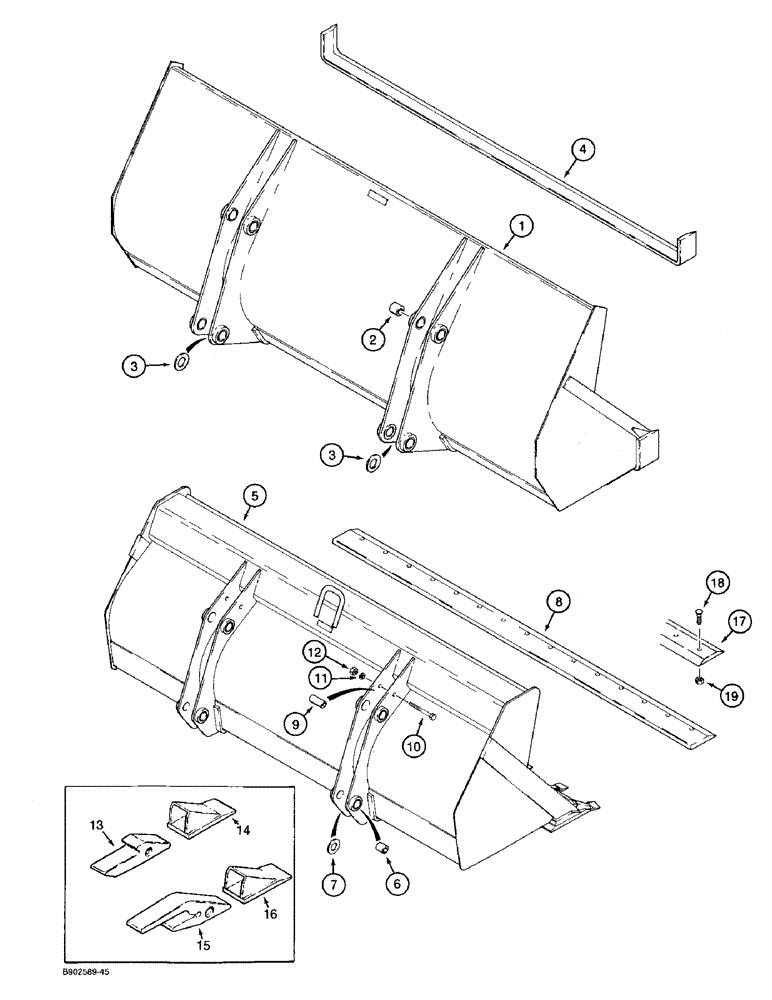

Запчасти Case 590 (9-016) - LOADER BUCKETS, SHORT LIP BUCKETS (09) - CHASSIS/ATTACHMENTS

D134142

BUCKET

ASSEMBLY - loader, 90 inch (2286 mm) wide, without teeth, machinery item, order from Machinery Price List, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear

8шт.

3

D135602

WASHER

- hardened, special, used as a spacer, welded to inner ear at lower pin hole only

2шт.

4

D65287

EDGE, CUTTING

EDGE - cutting, front, 90 inch (2285 mm) bucket

1шт.

D134183

BUCKET

ASSEMBLY - loader, 93 inch (2362 mm) wide, without teeth, machinery item, order from Machinery Price List, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear

8шт.

3

D135602

WASHER

- hardened, special, used as a spacer, welded to inner ear at lower pin hole only

2шт.

4

E35363

BLADE

EDGE - cutting, front, 93 inch (2362 mm) bucket

1шт.

D148914

BUCKET

ASSEMBLY - loader, 90 inch (2286 mm) wide, without teeth, machinery item, order from Machinery Price List, Includes: Ref. 5 - 12, long lip buckets

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET - loader, long lip

1шт.

6

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear, long lip buckets

8шт.

7

D135602

WASHER

- hardened, special, used as a spacer, welded to inner ear at lower pin hole only, long lip buckets

2шт.

8

D147136

EDGE

- cutting, front, 90 inch (2285 mm) bucket, long lip

1шт.

9

D149140

SPACER

- chain hook, at bucket ear, long lip buckets

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch, used as chain hook, long lip buckets

2шт.

11

492-11075

LOCK WASHER,3/4"

long lip buckets 3/4"

2шт.

12

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, long lip buckets

2шт.

13

D26368

SUPPORT

SHANK - tooth, if used, long lip buckets

1шт.

14

D27748

TOOTH

POINT - tooth, if used, long lip buckets

1шт.

15

D58499

SUPPORT

SHANK - tooth, heavy duty service option, if used, long lip buckets

1шт.

16

D36720

TOOTH

POINT - tooth, heavy duty service option, if used, long lip buckets

1шт.

17

D147323

EDGE

- cutting, bolted on, used on D148914 long lip loader bucket only

1шт.

18

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

BOLT - plow, 3/4 NC x 2-1/2 inch, grade 8, bolted on cutting edge

15шт.

19

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, bolted on cutting edge

15шт.
