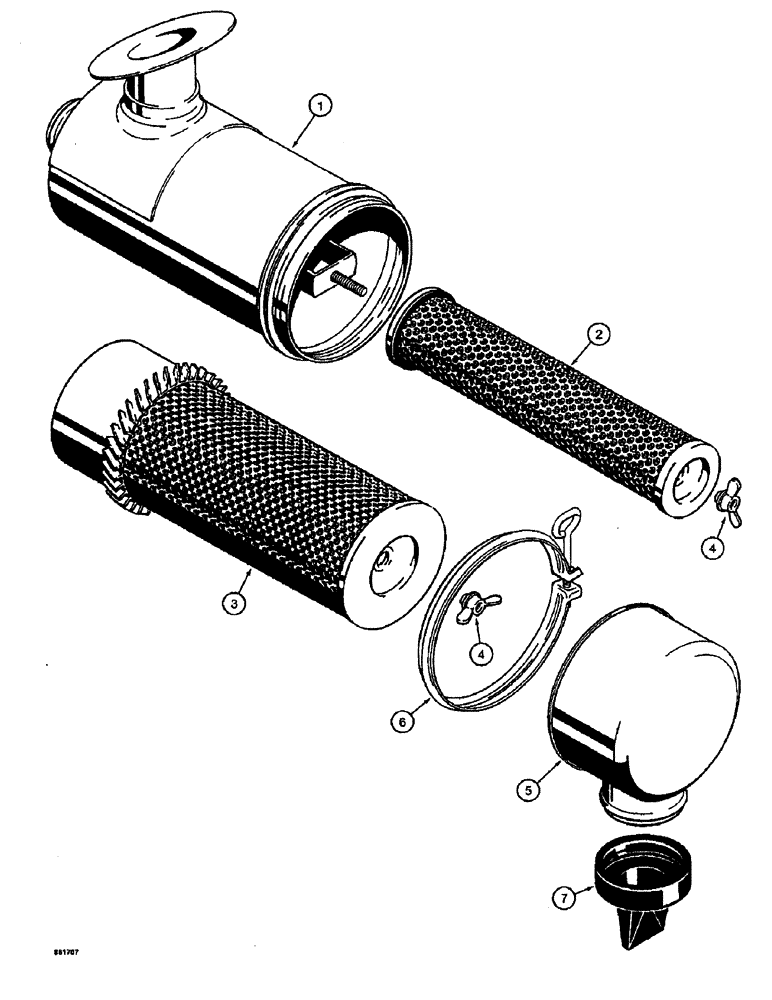

Запчасти Case 590 (2-06) - AIR CLEANER (02) - ENGINE

D143874

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

A173291

AIR FILTER

ELEMENT - secondary

1шт.

3

A173290

AIR FILTER

ELEMENT - primary

1шт.

4

D78354

WING NUT

NUT - wing, element retaining

2шт.

5

A184598

COVER

- end

1шт.

6

F84999

CLAMP,168.28mm

- air cleaner, housing to end cover

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

POPPET, valve, dust, rubber

1шт.
