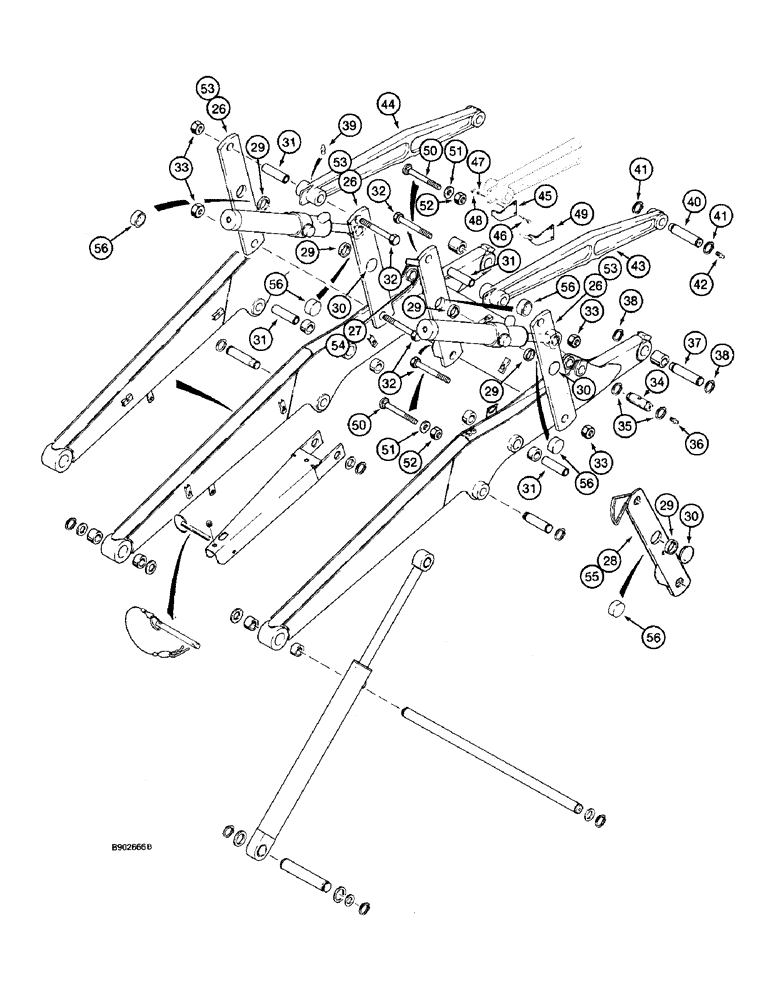

Запчасти Case 590 (9-014) - LOADER FRAME AND MOUNTING PARTS (CONT) (09) - CHASSIS/ATTACHMENTS

28

D150938

LINK ASSY.

LINK - bucket cylinder, right-hand inner, with extra hole for antirollback rod, models with clam bucket (replaces D149230 link), see Ref. 27 for models without clam bucket, no longer available, replaced by Ref. 55, D151155 link, Includes: Ref. 29 and 30

1шт.

Ref. 26, 27, and 28 links must not be mixed with Ref. 53, 54, and 55 links. Replace Ref. 26, 27, or 28 link with a set. Order (3) D151153, Ref. 53, and (1) D151154, Ref. 54, or (1) D151155, Ref. 55, links.

1шт.

29

D129272

BUSHING

one per each link, Ref. 26-28, no longer available, order D151034, Ref. 56

1шт.

30

NSS

NOT SOLD SEPARAT

CAP - one per each link, Ref. 26-28

1шт.

31

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING - cylinder links, spacer

4шт.

32

416-12120

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 7 1/2", Gr 8

BOLT - hex, 3/4 NC x 7-1/2 inch, no longer used, order Ref. 50-52

4шт.

33

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC, no longer used, order Ref. 50-52

4шт.

34

D148065

PIN,40mm OD x 121mm L

- bucket cylinder rod end

2шт.

35

800-44040

SNAP RING,M40, Ext

RING - snap, pin retaining, bucket cylinder rod end

4шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

37

D129256

PIN,40mm OD x 175mm L

- loader lift frame to lower bucket mounting hole

2шт.

38

800-44040

SNAP RING,M40, Ext

RING - snap, pin retaining, lift frame to lower bucket mounting hole

4шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

40

D129257

PIN,40mm OD x 175mm L

- link to upper bucket mounting hole

2шт.

41

800-44040

SNAP RING,M40, Ext

RING - snap, pin retaining, link to bucket

4шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

43

D139595

PITMAN

LINK - bucket, without bushings, right-hand, with or without clam bucket

1шт.

44

D139595

PITMAN

LINK - bucket, without bushings, left-hand, with or without clam bucket

1шт.

45

D121194

POINTER

- bucket position, models without clam bucket

1шт.

46

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

49

D123157

SUPPORT

POINTER - bucket position, models with clam bucket

1шт.

50

D150708

BOLT

- carriage, 3/4 NC x 7-1/4 inch

4шт.

51

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

4шт.

52

29-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

4шт.

53

D151153

LINK ASSY.

LINK - bucket cylinder, outer right-hand and inner and outer left-hand, see note below

3шт.

Ref. 26, 27, and 28 links must not be mixed with Ref. 53, 54, and 55 links. Replace Ref. 26, 27, or 28 link with a set. Order (3) D151153, Ref. 53, and (1) D151154, Ref. 54, or (1) D151155, Ref. 55, links.

1шт.

54

D151154

LINK ASSY.

LINK - bucket cylinder, inner right-hand, with extra hole for antirollback rod, models without clam bucket, see Ref. 55 for models with clam bucket, see note below

1шт.

Ref. 26, 27, and 28 links must not be mixed with Ref. 53, 54, and 55 links. Replace Ref. 26, 27, or 28 link with a set. Order (3) D151153, Ref. 53, and (1) D151154, Ref. 54, or (1) D151155, Ref. 55, links.

1шт.

55

D151155

LINK ASSY.

LINK - bucket cylinder, inner right-hand, with extra hole for antirollback rod, models with clam bucket, see Ref. 54 for models without clam bucket, see note below, Includes: Ref. 56

1шт.

Ref. 26, 27, and 28 links must not be mixed with Ref. 53, 54, and 55 links. Replace Ref. 26, 27, or 28 link with a set. Order (3) D151153, Ref. 53, and (1) D151154, Ref. 54, or (1) D151155, Ref. 55, links.

1шт.

56

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

- closed, one per each link, Ref 53-55

1шт.
