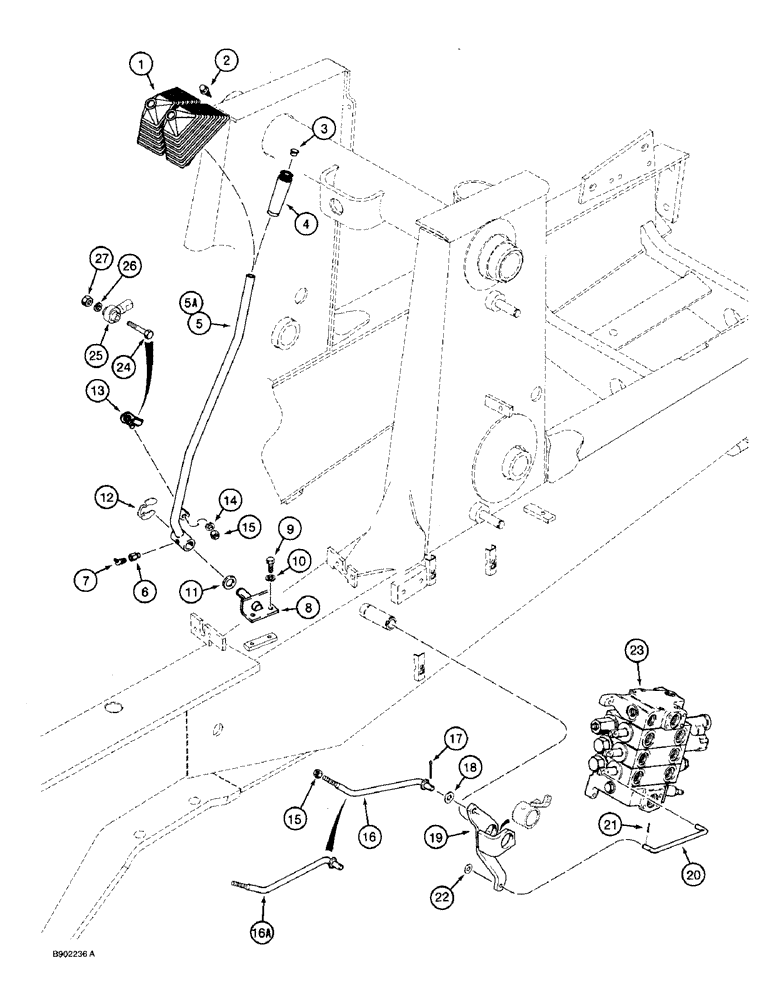

Запчасти Case 590 (9-006) - LOADER CLAM CONTROL (09) - CHASSIS/ATTACHMENTS

1

D137465

BOOT

- two lever, used on models with clam control lever, see figure 9-2 for boot used on models without clam control lever

1шт.

2

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

4шт.

3

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

1шт.

4

D91439

TUBE

KNOB - lever, loader clam control

1шт.

5

D149291

LEVER

- loader clam control, used with Ref. 13-15, if used

1шт.

5a

D150634

LEVER ASSY.

LEVER - loader clam control, used with Ref. 24-27, if used

1шт.

6

D149327

ADAPTER

- grease fitting, special

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

8

D149119

BRACKET

- mounting, control lever

1шт.

9

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

1шт.

12

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING - lever retaining, special

1шт.

13

R47940

BALL JOINT

JOINT - ball, control lever, if used

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1-2шт.

16

D149372

ROD

- loader clam control, with formed washer, 45 degree bend at bellcrank, used with Ref. 13-15, no longer available, order D150636, Ref. 16A

1шт.

16a

D150636

ROD

- loader clam control, with welded-on washer, 90 degree bend at bellcrank, used with Ref. 24-27, if used

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

495-81020

WASHER,17/32" x 1" x .030"

- flat, 25/32 x 1-1/4 x 19/64 inch

1шт.

19

D149183

DRIVE, ANGLE

BELLCRANK - loader clam control

1шт.

20

D149038

PITMAN

ROD - lift, bellcrank to clam section

1шт.

21

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

23

1980433C1

DISTRIBUTOR

VALVE ASSEMBLY - loader control, three spool, see parts list figure 8-60, for mounting see figure 9-2

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

25

D136773

BALL JOINT

JOINT - ball, control lever, if used

1шт.

26

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.
