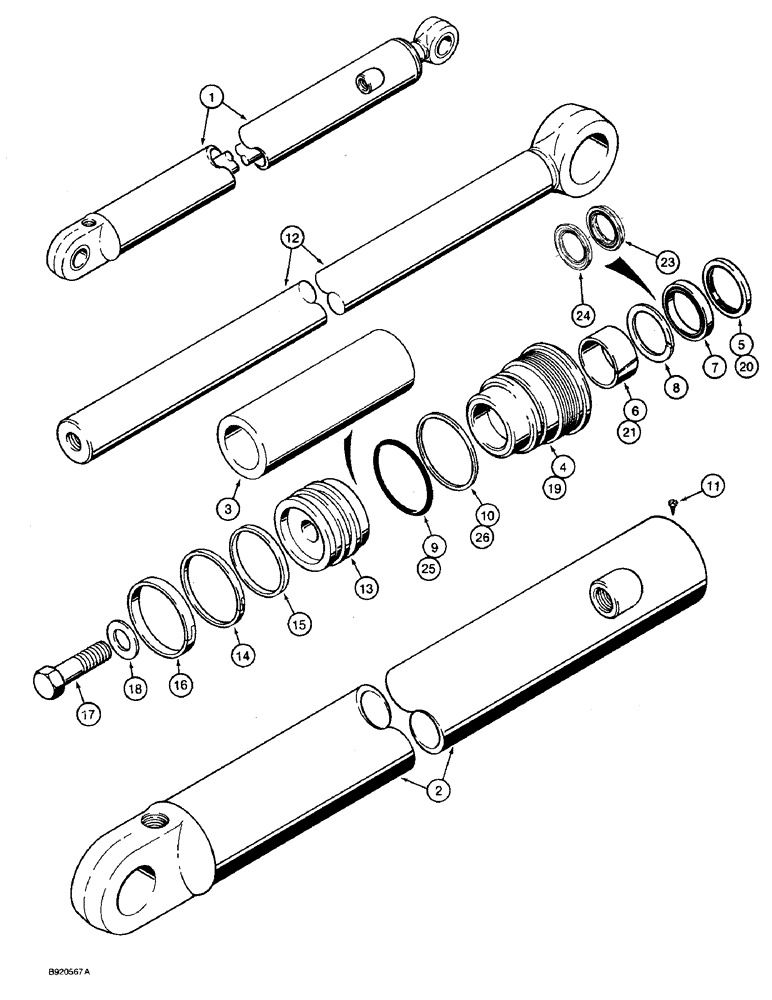

Запчасти Case 590 (8-126) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

ASSEMBLY - 76 mm ID x 1220 mm stroke, dipper extension, Includes: Ref. 2 - 26

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1340854C2

TUBE,76mm Bore Dia

ASSEMBLY - cylinder, without bushing

1шт.

3

1346076C1

SPACER

- 7-1/2 inch long, between gland and piston

1шт.

G109885

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 19, G109884 gland and 1543267C1 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G110049.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G110049.

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049.

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049.

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110049.

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110049.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1346077C1

ROD

- piston, 44 mm diameter, without bushing

1шт.

13

G107277

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of seal kit P/N G110049.

1шт.

Part of seal kit P/N 1543267C1.

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 19 - 26

1шт.

19

G109884

CYLINDER END CAP

GLAND - cylinder

1шт.

20

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1543267C1.

1шт.

21

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N 1543267C1.

1шт.

22

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 23 and 24

1шт.

Part of seal kit P/N 1543267C1.

1шт.

23

1542999C1

SEAL

- rod, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

24

1542998C1

SEALING RING

- buffer, NSS, order 1543267C1 kit below

1шт.

Part of seal kit P/N 1543267C1.

1шт.

25

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543267C1.

1шт.

26

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N 1543267C1.

1шт.

G110049

KIT

- seal, Includes: Ref. 5 - 10 and 14 - 16, no longer available, order 1543267C1 kit below

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 14 - 16, 20 - 26 and an instruction sheet

1шт.
