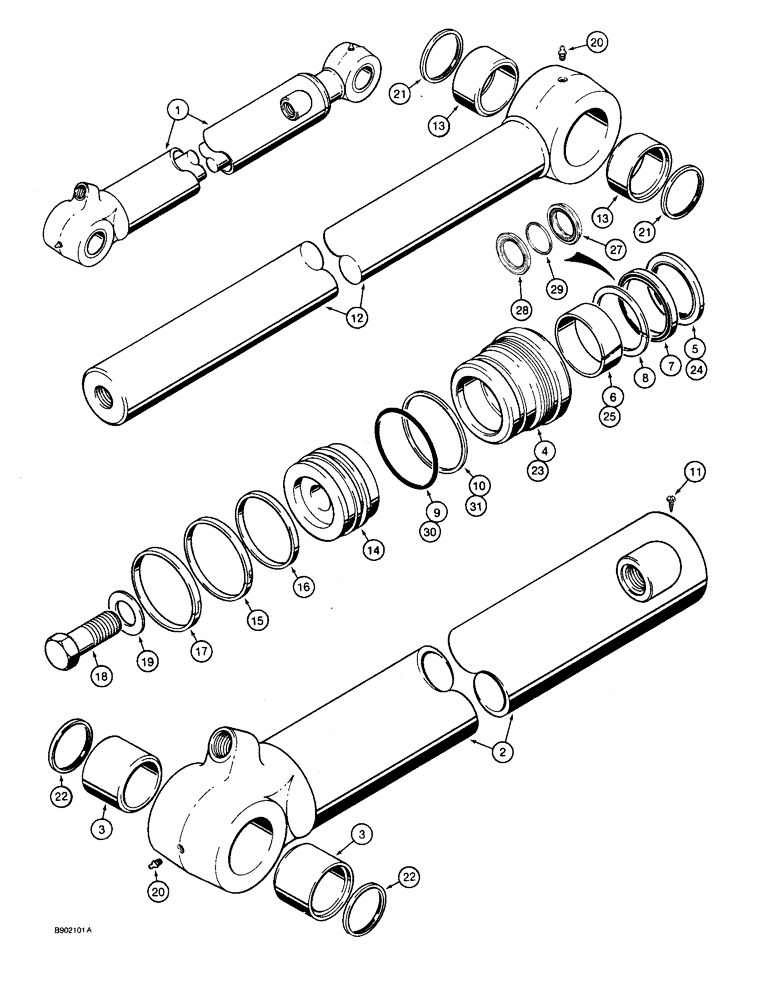

Запчасти Case 590 (8-122) - 1986902C1 BACKHOE BUCKET CYLINDER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1986902C1
CYLINDER
ASSEMBLY - 89 mm ID x 872 mm stroke, bucket with grease seals (Ref. 21 and 22) at rod and tube eyes, no longer available, order 1986902C2 cylinder on figure 8-124, Includes: Ref. 2 - 31
1шт.
The cylinder assembly part number is stamped on some cylinder glands or tubes.
1шт.
2
1346103C1
TUBE
ASSEMBLY - cylinder, no longer available, order 1346103C2 tube on figure 8-124, Includes: Ref. 3
1шт.
3
1346101C1
RING,60.19mm ID x 70mm OD x 39mm L
BUSHING - tube
2шт.
G109894
GLAND
ASSEMBLY - cylinder, no longer available, order Ref. 23, 1542922C1 gland and 1542923C2 seal kit, Includes: Ref. 4 - 10
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
WIPER - piston rod
1шт.
Part of seal kit P/N G110046.
1шт.
6
G109908
BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L
- center
1шт.
Part of seal kit P/N G110046.
1шт.
7
G109228
SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk
- U-cup, with O-ring, piston rod, wide
1шт.
Part of seal kit P/N G110046.
1шт.
8
G107998
SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk
- buffer, grooved, piston rod, narrow
1шт.
Part of seal kit P/N G110046.
1шт.
9
O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro
Gland -235, 70 Duro, 3.109" ID x .139" Thk
1шт.
Part of seal kit P/N G110046.
1шт.
10
D38858
BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
RING - backup, gland O-ring
1шт.
Part of seal kit P/N G110046.
1шт.
11
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "
1шт.
12
1986903C1
PISTON ROD
ROD ASSEMBLY - piston, 64 mm diameter, no longer available, order 1542658C1 rod on figure 8-124, Includes: Ref. 13
1шт.
13
D140029
BUSHING,50.22mm ID x 60mm OD x 25.5mm L
- piston rod
2шт.
14
1986906C1
PISTON
- cylinder
1шт.
15
G102286
SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
- piston
1шт.
Part of seal kit P/N G110046.
1шт.
Part of seal kit P/N 1542923C2.
1шт.
16
G100710
RING,Square, 5.28mm Thk x 75.31mm ID
- backup, piston seal
1шт.
Part of seal kit P/N G110046.
1шт.
Part of seal kit P/N 1542923C2.
1шт.
17
G100711
SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
Piston
1шт.
Part of seal kit P/N G110046.
1шт.
Part of seal kit P/N 1542923C2.
1шт.
18
28-2052
BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8
- hex, 1-1/4 NF x 3-1/4 inch, grade 8
1шт.
19
G104989
WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk
- flat, 1-1/4 inch, hardened
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
2шт.
22
1346355C1
WIPER SEAL
- tube eyes
2шт.
NSS
NOT SOLD SEPARAT
GLAND ASSEMBLY - cylinder, Includes: Ref. 23 - 29
1шт.
23
1542922C1
GLAND
- cylinder
1шт.
24
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
WIPER - piston rod
1шт.
Part of seal kit P/N 1542923C2.
1шт.
25
G109908
BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L
- center
1шт.
Part of seal kit P/N 1542923C2.
1шт.
26
SEAL KIT,63.5mm Rod x 88.9mm Bore
KIT - seal, NSS, not shown, Includes: Ref. 27 - 29
1шт.
Part of seal kit P/N 1542923C2.
1шт.
27
1542931C1
SEAL
- rod, NSS, order 1542923C2 kit below
1шт.
Part of seal kit P/N 1542923C2.
1шт.
28
1542930C1
SEAL
- buffer, NSS, order 1542923C2 kit below
1шт.
Part of seal kit P/N 1542923C2.
1шт.
29
1543352C1
RING - back up, NSS, no longer included in kit
1шт.
Part of seal kit P/N 1542923C2.
1шт.
30
O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro
Gland -235, 70 Duro, 3.109" ID x .139" Thk
1шт.
Part of seal kit P/N 1542923C2.
1шт.
31
D38858
BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
RING - backup, gland O-ring
1шт.
Part of seal kit P/N 1542923C2.
1шт.
G110046
KIT
- seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1542923C2 kit below
1шт.
SEAL KIT,63.5mm Rod x 88.9mm Bore
KIT - seal, Includes: Ref. 15 - 17, 24 - 31 and an instruction sheet
1шт.
