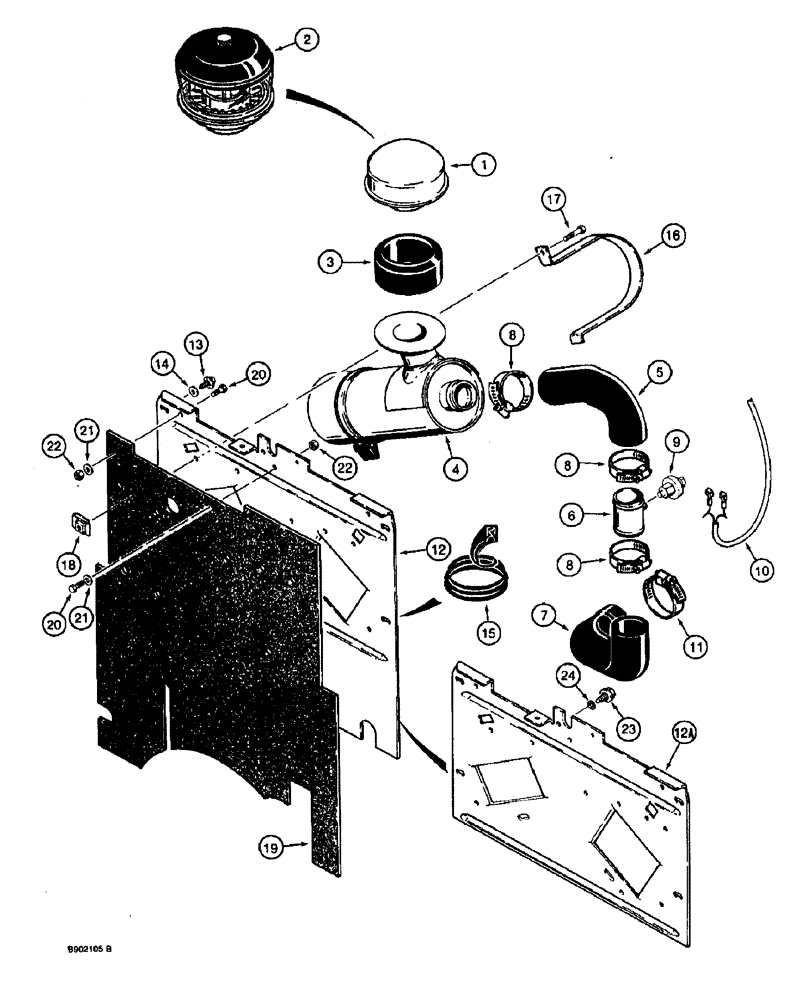

Запчасти Case 590 (2-04) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A61277

CAP

- air cleaner, standard, if used

1шт.

2

A24391

AIR CLEANER

PRECLEANER ASSEMBLY - air, if used, parts list figure 2-8

1шт.

3

D143756

SEAL

- air cleaner

1шт.

4

D143874

AIR CLEANER

CLEANER ASSEMBLY - air, parts list figure 2-6

1шт.

5

D139340

INTAKE AIR HOSE,63.50 mm ID, SAE J200

Air Cleaner, Upper 63.50 mm ID, SAE J200

1шт.

6

D139343

ADAPTER

- coupling, air restriction

1шт.

7

D139394

LARGE HOSE

HOSE - air cleaner, lower, at engine

1шт.

8

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

3шт.

9

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator

1шт.

10

D140449

HARNESS

WIRE - jumper, restriction indicator, attaches to front console wiring harness

1шт.

11

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adj., 2-13/16 - 3-3/4 inch diameter, hose to engine

1шт.

12

D145021

BRACKET

- air cleaner mounting, attaches to chassis uprights, no longer available, order D150862 bracket, Ref. 12A

1шт.

12a

D150862

BRACKET

- air cleaner mounting, attaches to chassis upright

1шт.

13

187-1926

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

SCREW - self-tapping, hex washer head, 3/8 NC x 3/4 inch, if used

4шт.

13a

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW - self-tapping, hex head, 3/8 NC x 1 inch, if used, not shown

4шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

15

D43403

LINING

SEAL - 5 inch (127 mm) long, cut from F42827 bulk seal, see below

2шт.

16

D129158

STRAP

- air cleaner

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8 inch NC

1шт.

19

D150514

CURTAIN

PAD - heat and noise protection (replaces D145022 and D150352 pad)

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

22

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

3шт.

23

112865A1

SCREW

- special, 5/16 x 13/16 inch

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116 inch (2946 mm) long, bulk

1шт.
