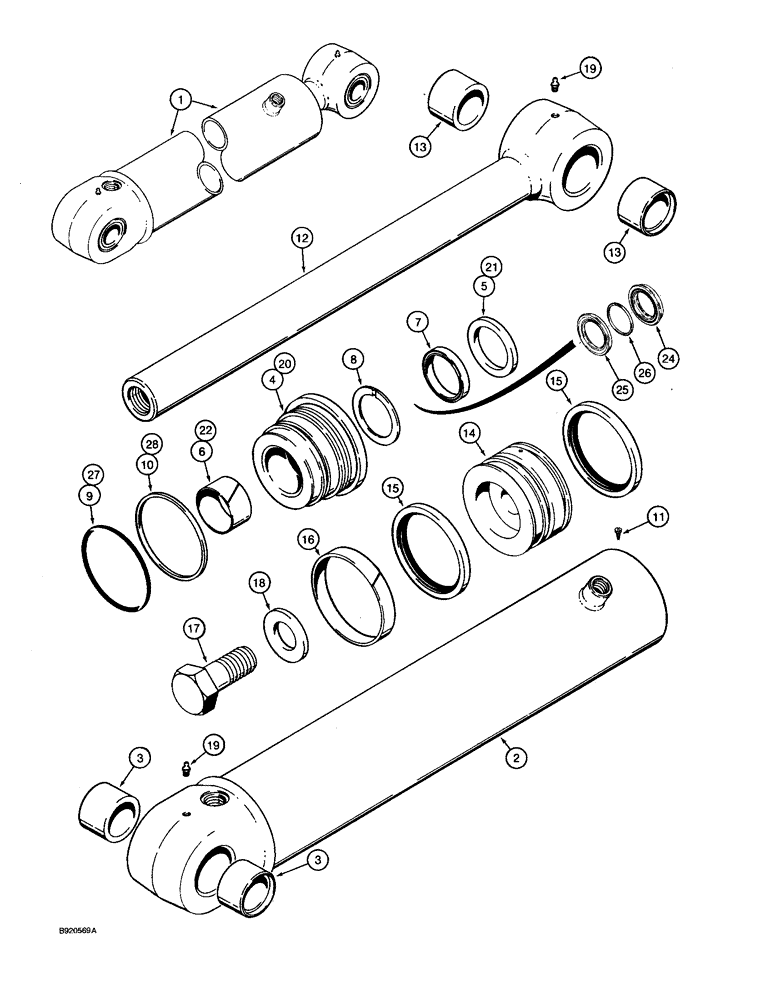

Запчасти Case 590 (8-120) - 1994520C2 BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

1994520C2

CYLINDER

ASSEMBLY - 140 mm ID x 564 mm stroke, dipper, without grease seals at rod and tube eyes, if used, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

140965A1R

REMAN-HYD CYLINDER

Reman for new P/N 1994520C2

1шт.

1

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

1994521C2

HYD TUBE,139.65 mm OD

TUBE - cylinder, Includes: Ref. 3

1шт.

3

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- tube

2шт.

1980370C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 20, 1980369C1 gland and 1994527C2 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1994527C1.

1шт.

6

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

Part of seal kit P/N 1994527C1.

1шт.

7

G109053

OIL SEAL

SEAL - U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N 1994527C1.

1шт.

8

G107999

SEAL

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1994527C1.

1шт.

9

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1994527C1.

1шт.

10

G107971

RING

- backup, gland O-ring

1шт.

Part of seal kit P/N 1994527C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1994525C3

ROD

ASSEMBLY - piston, 70 mm diameter, Includes: Ref. 13

1шт.

13

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- rod

2шт.

14

1994524C1

PISTON

- cylinder

1шт.

15

1980401C1

SEAL

- piston

2шт.

Part of seal kit P/N 1994527C1.

1шт.

Part of seal kit P/N 1994527C2.

1шт.

16

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

RING - wear, piston

1шт.

Part of seal kit P/N 1994527C1.

1шт.

Part of seal kit P/N 1994527C2.

1шт.

17

25987R1

BOLT,Hex, 1 1/2" - 12 x 3 1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8, replaces 28-2456

1шт.

18

G104990

WASHER

- flat, 1-1/2 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 20 - 28

1шт.

20

1980369C1

GLAND

- cylinder

1шт.

21

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1994527C2.

1шт.

22

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

Part of seal kit P/N 1994527C2.

1шт.

23

1542880C1

PACKAGE

KIT - seal, NSS, not shown, Includes: Ref. 24 - 26

1шт.

Part of seal kit P/N 1994527C2.

1шт.

24

1543008C1

SEAL - rod, NSS, order 1994527C2 kit below

1шт.

Part of seal kit P/N 1994527C2.

1шт.

25

1543007C1

SEAL - buffer, NSS, order 1994527C2 kit below

1шт.

Part of seal kit P/N 1994527C2.

1шт.

26

1543353C1

RING - back up, NSS, no longer included in kit

1шт.

Part of seal kit P/N 1994527C2.

1шт.

27

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1994527C2.

1шт.

28

G107971

RING

- backup, gland O-ring

1шт.

Part of seal kit P/N 1994527C2.

1шт.

1994527C1

SEAL KIT

- seal, Includes: Ref. 5 - 10 , 15 and 16, no longer available, order 1994527C2 kit below

1шт.

1994527C2

SEAL KIT

KIT - seal, Includes: Ref. 15, 16, 21 - 28 and an instruction sheet

1шт.
