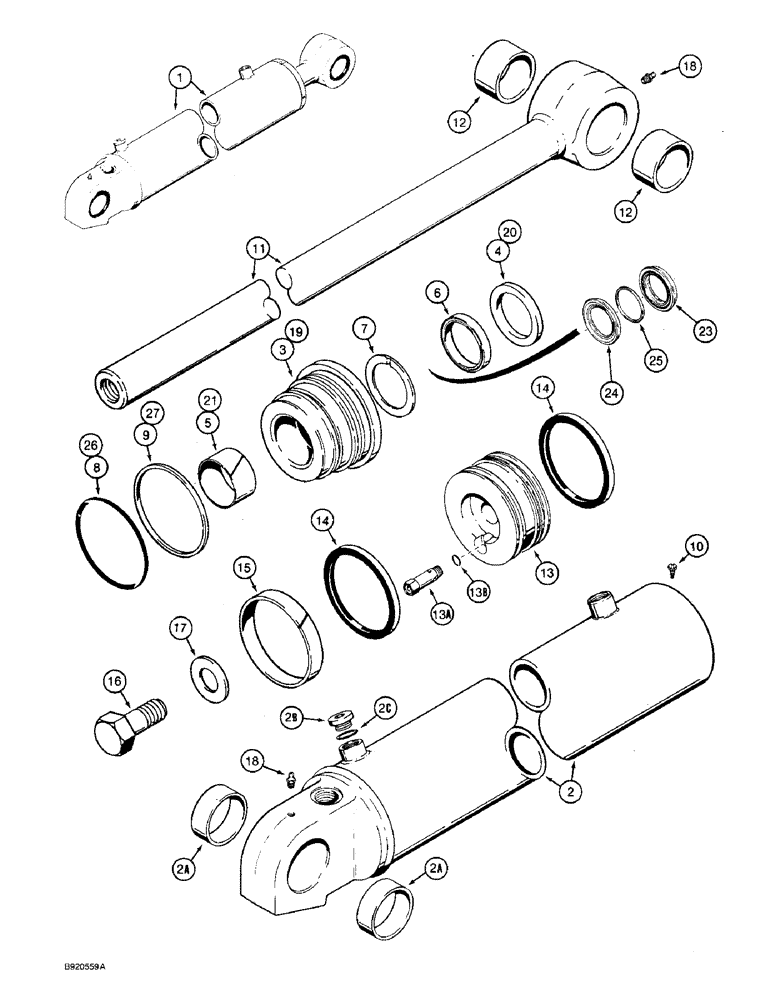

Запчасти Case 590 (8-116) - 1980395C6 BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

1980395C6

CYLINDER

ASSEMBLY - 140 mm ID x 976 mm stroke, boom, without grease seals at rod and tube eyes, if used, Includes: Ref. 2 - 27

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1980396C6

HYD TUBE

TUBE - cylinder, Includes: Ref. 2A - 2C

1шт.

2a

D151062

BUSHING,80.19mm ID x 90mm OD x 30mm L

- tube (replaces D144165)

2шт.

2b

86625138

PLUG,7/18" - 14

Includes Ref. 2C Hex Soc, 7/8"-14 ORB

1шт.

2c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1980404C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 19, 1542982C1 gland and 1980412C2 seal kit, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1980412C1.

1шт.

5

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of seal kit P/N 1980412C1.

1шт.

6

G109052

SEAL

- U-cup, piston rod, with O-ring, wide

1шт.

Part of seal kit P/N 1980412C1.

1шт.

7

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1980412C1.

1шт.

Part of seal kit P/N 1980412C2.

1шт.

8

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1980412C1.

1шт.

9

G107971

RING

- backup, gland O-ring

1шт.

Part of seal kit P/N 1980412C1.

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

1346498C3

ROD

- piston, 64 mm diameter, Includes: Ref. 12

1шт.

12

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

- rod

2шт.

13

1346497C1

PISTON

- cylinder

1шт.

13a

1958028C1

VALVE

ASSEMBLY - relief, cartridge, internal component parts not serviced separately, Includes: Ref. 13B

1шт.

14

1980401C1

SEAL

- piston

2шт.

Part of seal kit P/N 1980412C1.

1шт.

Part of seal kit P/N 1980412C2.

1шт.

15

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

RING - wear, piston

1шт.

Part of seal kit P/N 1980412C1.

1шт.

Part of seal kit P/N 1980412C2.

1шт.

16

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

- hex, 1-3/8 NF x 3-1/2 inch, grade 8

1шт.

17

G32559

WASHER

- flat, 1-3/8 inch, hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 19 - 25

1шт.

19

1542982C1

GLAND

- cylinder

1шт.

20

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1980412C2.

1шт.

21

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of seal kit P/N 1980412C2.

1шт.

22

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, NSS, not shown, Includes: Ref. 23 - 25

1шт.

Part of seal kit P/N 1980412C2.

1шт.

23

1542931C1

SEAL

- rod, NSS, order 1980412C2 kit below

1шт.

Part of seal kit P/N 1980412C2.

1шт.

24

1542930C1

SEAL

- buffer, NSS, order 1980412C2 kit below

1шт.

Part of seal kit P/N 1980412C2.

1шт.

25

1543352C1

RING - back up, NSS, no longer included in kit

1шт.

Part of seal kit P/N 1980412C2.

1шт.

26

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Gland -251, 70 Duro, 5.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1980412C2.

1шт.

27

G107971

RING

- backup, gland O-ring

1шт.

Part of seal kit P/N 1980412C2.

1шт.

1980412C1

SEAL KIT

- seal, Includes: Ref. 4 - 9 and 13B - 15, no longer available, order 1980412C2 kit below

1шт.

1980412C2

SEAL KIT

KIT - seal, Includes: Ref. 7, 13B - 15, 20 - 27 and an instruction sheet

1шт.

13b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external

1шт.

Part of seal kit P/N 1980412C1.

1шт.

Part of seal kit P/N 1980412C2.

1шт.
