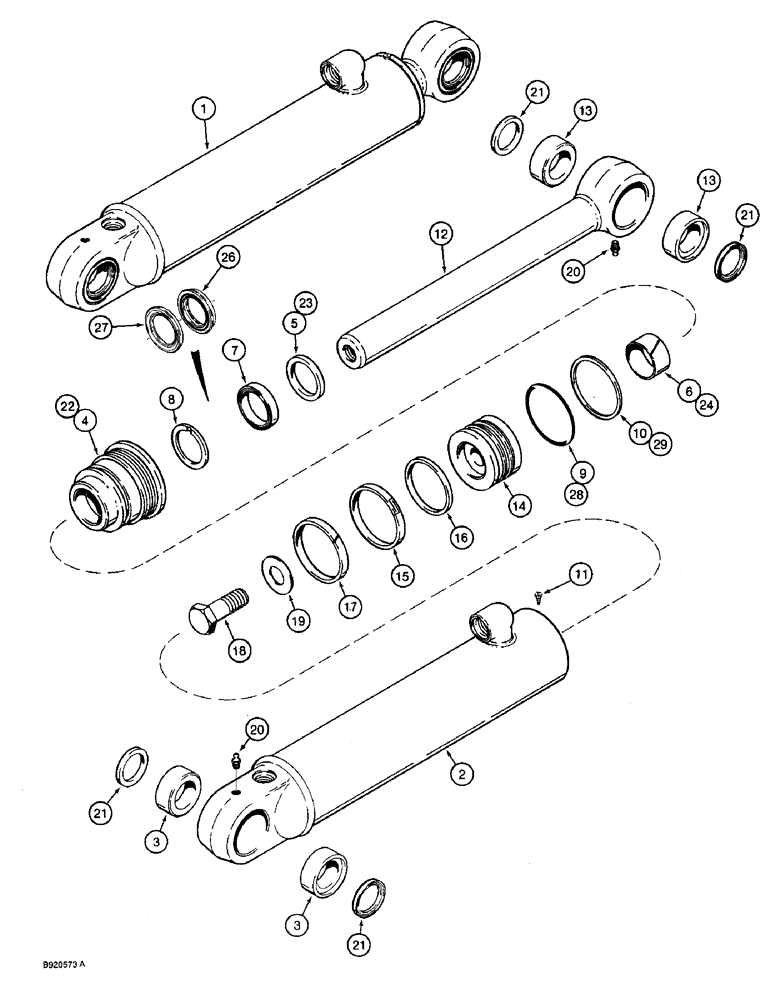

Запчасти Case 590 (8-110) - 1343584C1 BACKHOE SWING CYLINDER (08) - HYDRAULICS

1

1343584C1

CYLINDER

ASSEMBLY - 95 mm ID x 305 mm stroke, swing, with grease seals (Ref. 21) at rod and tube eyes, no longer available, order 1343584C2 cylinder on figure 8-112, Includes: Ref. 2 - 29

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1343588C1

TUBE

ASSEMBLY - cylinder, no longer available, order 1343588C2 tube on figure 8-112, Includes: Ref. 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

- tube

2шт.

1980187C1

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 22, 1980184C1 gland and 1980181C2 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N 1980181C1.

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N 1980181C1.

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N 1980181C1.

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1980181C1.

1шт.

9

238-5340

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

- gland, replaces 468335R1

1шт.

Part of seal kit P/N 1980181C1.

1шт.

10

1980249C1

SEALING RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 1980181C1.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1343585C3

ROD

ASSEMBLY - piston, 51 mm diameter (replaces 1343585C1)

1шт.

13

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

- piston rod

2шт.

14

1341818C1

PISTON

- cylinder

1шт.

15

1340764C1

SEAL,Locking, 92.13mm ID x 96.85mm OD x 6.96mm Thk

SEAL - piston

1шт.

Part of seal kit P/N 1980181C1.

1шт.

Part of seal kit P/N 1980181C2.

1шт.

16

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

- backup, piston seal

1шт.

Part of seal kit P/N 1980181C1.

1шт.

Part of seal kit P/N 1980181C2.

1шт.

17

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

RING - wear, piston

1шт.

Part of seal kit P/N 1980181C1.

1шт.

Part of seal kit P/N 1980181C2.

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

G32351

WASHER

- flat, special, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- rod and tube eye

4шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 26 and 27

1шт.

22

1980184C1

GLAND

- cylinder

1шт.

23

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N 1980181C2.

1шт.

24

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N 1980181C2.

1шт.

25

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Not shown

1шт.

Part of seal kit P/N 1980181C2.

1шт.

26

1543001C1

SEAL

- rod, NSS, order 1980181C2 kit below

1шт.

Part of seal kit P/N 1980181C2.

1шт.

27

1543000C1

SEAL

- buffer, NSS, order 1980181C2 kit below

1шт.

Part of seal kit P/N 1980181C2.

1шт.

28

238-5340

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

- 2-5/8 ID x 1/8 inch wide, gland

1шт.

Part of seal kit P/N 1980181C2.

1шт.

29

1980249C1

SEALING RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 1980181C2.

1шт.

1980181C1

SEAL KIT

KIT - seal, Includes: Ref. 5 - 10, 15 - 17, plus additional O-rings not required in this application, no longer available, order 1980181C2 kit below

1шт.

1980181C2

SEAL KIT

KIT - seal, Includes: Ref. 15 - 17, 23 - 29, plus an additional O-ring and seal not used in this application and an instruction sheet

1шт.
