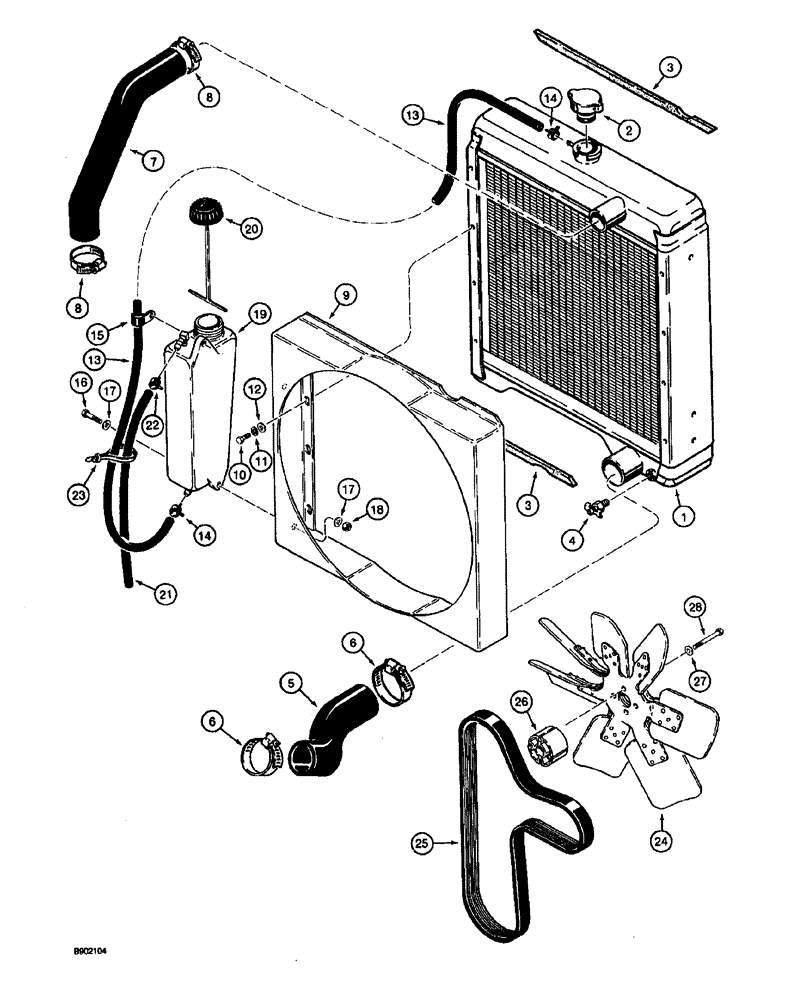

Запчасти Case 590 (2-02) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

1

A189481

RADIATOR

- engine cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A173165

SEALING STRIP

- radiator, upper and lower

2шт.

4

217-92

COCK

VALVE - 1/4 inch PT, drain

1шт.

5

D127775

RADIATOR HOSE,58.00 mm ID x 225.00 mm, SAE 20R4 Class C

58.00 mm ID x 225.00 mm, SAE 20R4 - Class C, Lower

1шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch diameter, lower radiator hose

2шт.

7

D127774

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 Class C

- Upper 45.00 mm ID x 265.00 mm, SAE 20R4 Class C

1шт.

8

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

9

D147078

SHROUD

- fan

1шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

8шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

13

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir, Cut to required length from L126767 bulk hose, See below 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

14

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, at radiator and reservoir

2шт.

15

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- P-type, attaches to coolant recovery reservoir

1шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

18

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

2шт.

19

D148344

RESERVOIR

- coolant recovery bottle

1шт.

20

1547924C1

CAP

- screw-on, tethered, coolant recovery bottle (replaces A184079)

1шт.

21

D148394

HOSE

- 8 mm x 500 mm, coolant overflow, cut to required length from L126767 bulk hose, see below

1шт.

22

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - coolant overflow hose at reservoir

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

A189138

FAN

- engine

1шт.

25

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

26

J942341

SLEWING RING

- fan, 54 mm long

1шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

28

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

4шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
