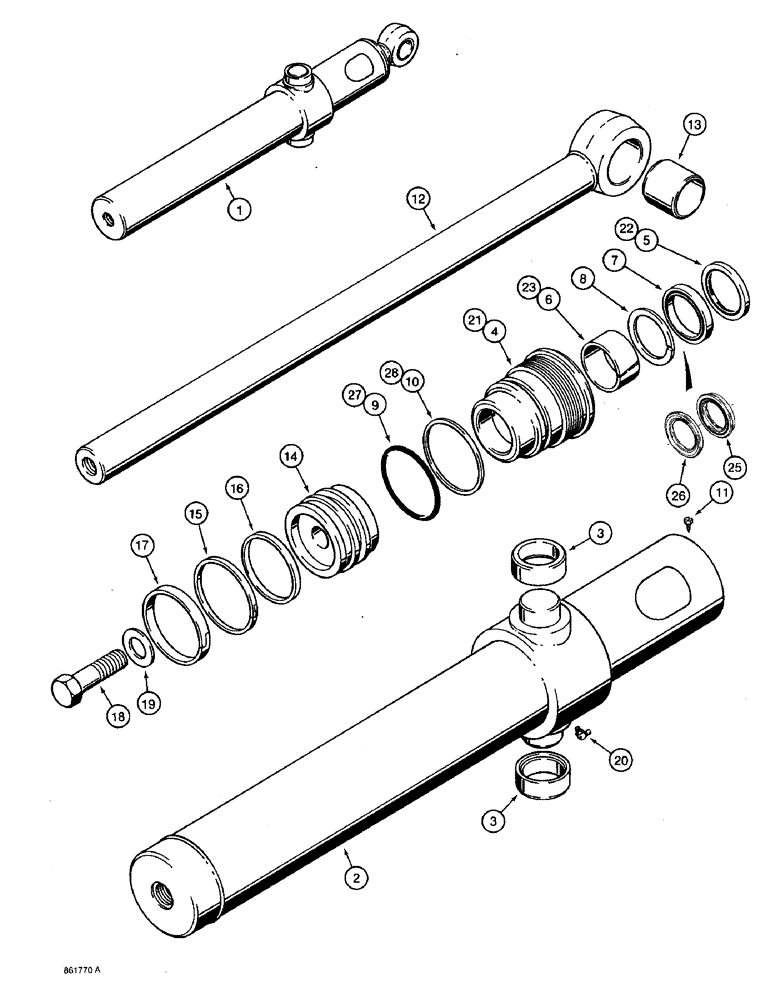

Запчасти Case 590 (8-104) - G108486 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 mm ID x 522 mm stroke, bucket, right-hand, includes bushings in cylinder tube, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 mm ID x 522 mm stroke, bucket, left-hand, includes bushings in cylinder tube, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G108508

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY - cylinder, right-hand, Includes: Ref. 3

1шт.

2

G108509

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY - cylinder, left-hand, Includes: Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

- G108508 or G108509 tube

2шт.

G109880

GLAND

ASSEMBLY - cylinder, no longer available, order Ref. 21, G109881 gland and 1543256C1 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110050.

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G110050.

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110050.

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110050.

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110050.

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110050.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1978056C1

PISTON ROD

ROD ASSEMBLY - piston, 38 mm diameter, no longer available, order 110307A1 rod on figure 8-105A, Includes: Ref. 13

1шт.

13

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

- piston rod

1шт.

14

G108518

PISTON

- cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110050.

1шт.

Part of seal kit P/N 1543256C1.

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G110050.

1шт.

Part of seal kit P/N 1543256C1.

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of seal kit P/N G110050.

1шт.

Part of seal kit P/N 1543256C1.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 21 - 28

1шт.

21

G109881

GLAND

- cylinder

1шт.

22

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1543256C1.

1шт.

23

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N 1543256C1.

1шт.

24

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 25 and 26

1шт.

Part of seal kit P/N 1543256C1.

1шт.

25

1542997C1

SEALING RING

- rod, NSS, order 1543256C1 kit below

1шт.

Part of seal kit P/N 1543256C1.

1шт.

26

1542996C1

SEAL

- buffer, NSS, order 1543256C1 kit below

1шт.

Part of seal kit P/N 1543256C1.

1шт.

27

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543256C1.

1шт.

28

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N 1543256C1.

1шт.

G110050

KIT

- seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1543256C1 kit below

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

KIT, SEALS, Incl Ref 15 - 17, 22 - 28 and an instruction sheet

1шт.
