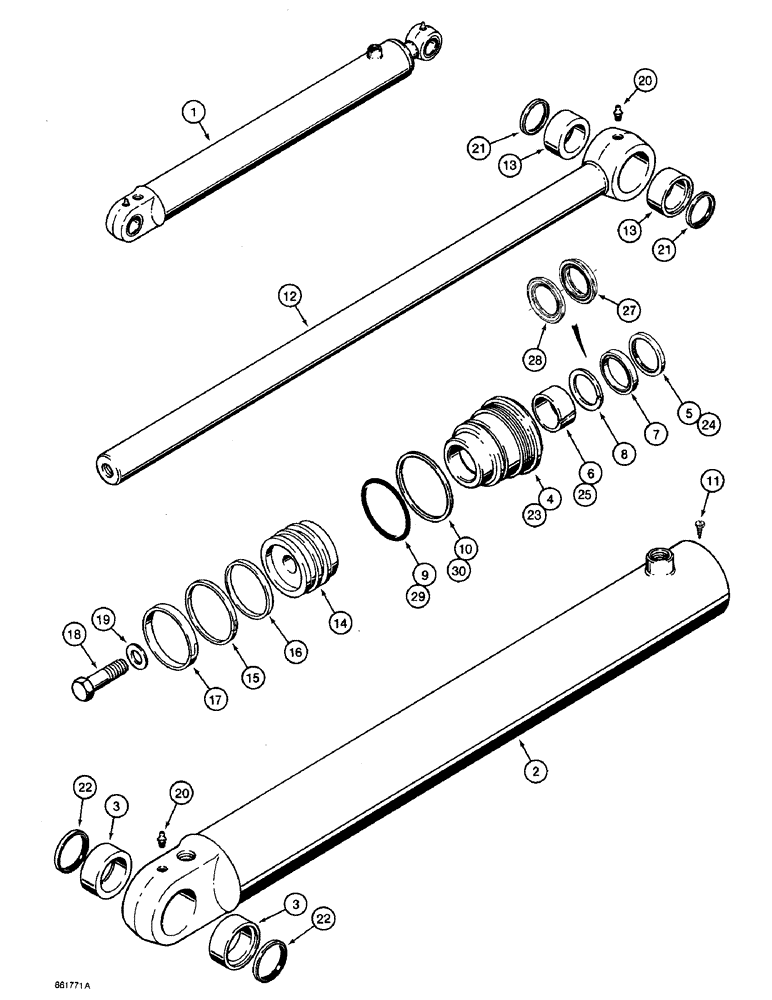

Запчасти Case 590 (8-100) - 1980220C2 LOADER LIFT CYLINDER (08) - HYDRAULICS

1

1980220C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 89 mm ID x 740 mm stroke, lift, right-hand and left-hand, with grease seals at rod and tube eyes (Ref. 21 and 22), no longer available, order 1542743C1 cylinder on figure 8-102, Includes: Ref. 2 - 30

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1980223C1

HYD TUBE,88.77 mm OD

TUBE ASSEMBLY - cylinder, no longer available, order 1542748C1 tube on figure 8-102, Includes: Ref. 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

- tube

2шт.

1971703C1

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, no longer available, order Ref. 23, 1971707C1 gland and 1543266C1 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110621.

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G110621.

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110621.

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110621.

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

Part of seal kit P/N G110621.

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of seal kit P/N G110621.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1341852C2

PISTON ROD

ROD ASSEMBLY - piston, 44 mm diameter, no longer available, order 110304A1 rod on figure 8-103A, Includes: Ref. 13

1шт.

13

D144895

BUSHING

- piston rod

2шт.

14

G110110

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G110621.

1шт.

Part of seal kit P/N 1543266C1.

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G110621.

1шт.

Part of seal kit P/N 1543266C1.

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of seal kit P/N G110621.

1шт.

Part of seal kit P/N 1543266C1.

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8, replaces 28-1240

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

21

D127833

SEAL

- rod eye

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- tube eye

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 23 - 28

1шт.

23

1971707C1

CYLINDER END CAP

GLAND - cylinder

1шт.

24

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 1543266C1.

1шт.

25

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N 1543266C1.

1шт.

26

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Incl Ref 27 and 28

1шт.

Part of seal kit P/N 1543266C1.

1шт.

27

1542999C1

SEAL

- rod, NSS, order 1543266C1 kit below

1шт.

Part of seal kit P/N 1543266C1.

1шт.

28

1542998C1

SEALING RING

- buffer, NSS, order 1543266C1 kit below

1шт.

Part of seal kit P/N 1543266C1.

1шт.

29

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Gland -235, 70 Duro, 3.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1543266C1.

1шт.

30

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 1543266C1.

1шт.

G110621

SEAL PACKAGE

KIT - seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1543266C1 kit below

1шт.

1543266C1

SEAL KIT

KIT - seal, Includes: Ref. 15 - 17, 24 - 30 and an instruction sheet

1шт.
