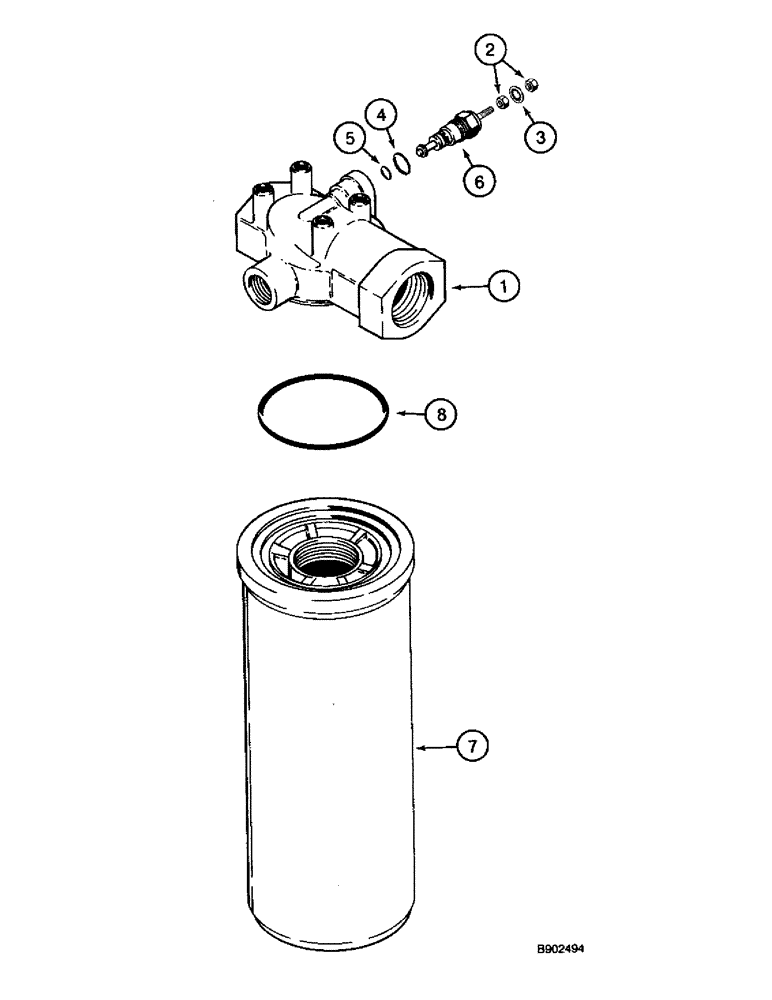

Запчасти Case 590 (8-098) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D150888

FILTER

ASSEMBLY - hydraulic oil (replaces D144480 filter), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, Includes: Ref. 2 - 5

1шт.

N6941

KIT

- restriction indicator repair (order components)

1шт.

2

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric

1шт.

D149921

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter replacement, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.
