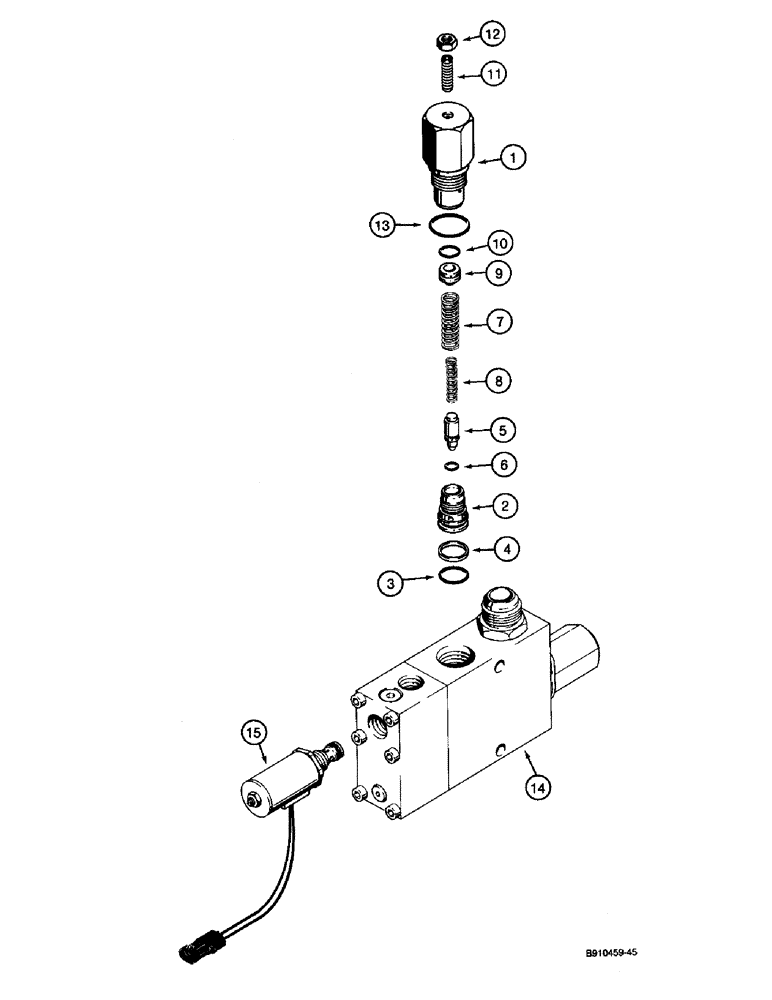

Запчасти Case 590 (8-096) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS

D150443

VALVE

ASSEMBLY - solenoid, backhoe boom lock, includes (2) 321-6046 warning decals, see figure 9-148 for decal 321-6046 warning decals, see figure 9-148 for decal, Includes: Ref. 1 - 15

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF ASSEMBLY - circuit, solenoid, used in production, order G110077 kit for service, Includes: Ref. 1 - 13

1шт.

Part of Service Kit, P/N G110077

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Relief valve seat (Replaces G107675) -018, 90 Duro, .739" ID x .070" Thk

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

15

D150809

SOLENOID

- relief, 12 volt, with connector

1шт.

D150781

REPAIR KIT

KIT, REPAIR, Incl. (3) springs, (1) ball, (1) poppet, and (1) plug which are not serviced separately and D150810 seal kit, not shown, see your 590 Service Manual for location of seals & springs are not serviced separately, not shown, Incl. Seal Kit

1шт.

D150810

SEAL

KIT - seal, includes (9) O-rings and (2) backup rings which

1шт.

G110077

KIT

- service for G110467 circuit relief valve, includes G110078 circuit relief valve assembly (Ref. 1 - 13) and an instruction sheet

1шт.
