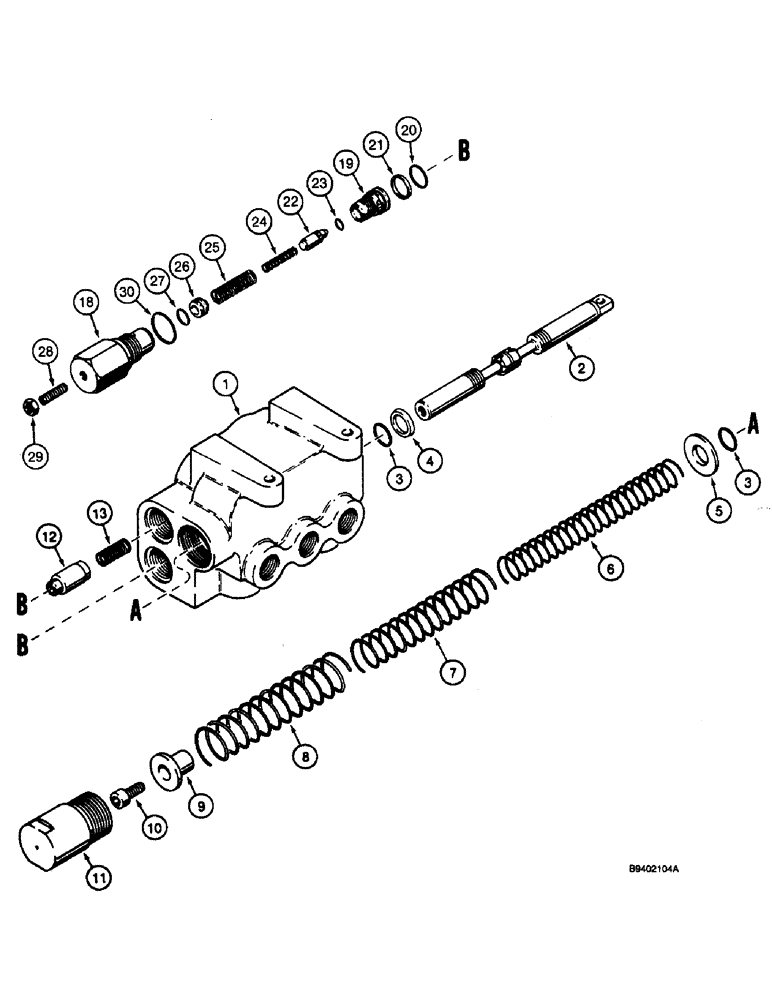

Запчасти Case 590 (8-095A) - BACKHOE SWING SEQUENCE VALVE (08) - HYDRAULICS

1346067C1

VALVE

ASSEMBLY - backhoe swing sequence, used with D150889 tube for six spool backhoe valves or D150896 tube, for seven spool backhoe valves, see figure 8-26 for tubes, Includes: Ref. 1 - 30

1шт.

The 1980440C1 valve has been replaced by 1346067C1. the new valve has only 3 ports on the side instead of 4 as shown. the drain tube is installed on the end under the spool on the replacement valve. install a 218-5062 straight fitting and run the new tube under the back hoe valve

1шт.

NSS

NOT SOLD SEPARAT

for seven spool backhoe valves, see figure 8-26 for tubes

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - backhoe swing sequence valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - backhoe swing sequence valve

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool (replaces G108461 O-ring)

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

5

G108896

O-RING

- O-ring

1шт.

6

G108895

SPRING

- inner

1шт.

7

G108892

SPRING

- center

1шт.

8

G108891

SPRING

- outer

1шт.

9

G108893

SEAT

- spring

1шт.

10

61-33812

HEX SOC SCREW,3/8"-16 x 3/4"

BOLT - hex socket head, 3/8 NC x 3/4 inch

1шт.

11

G108894

CAP

- spool end

1шт.

12

G108017

SPOOL

- shuttle, orifice

1шт.

13

G107174

SPRING

- shuttle spool

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, 4400 psi, spool capped end, used in production, order G110077 kit for service, Includes: Ref. 18 - 30

2шт.

Part of Service Kit, P/N G110077

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat (Replaces G107675) -018, 90 Duro, .739" ID x .070" Thk

1шт.

21

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

28

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW - set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

29

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G110077

KIT

- service for G110467 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Ref. 18-30) which is the same as G110467 except with a different pressure setting

1шт.
