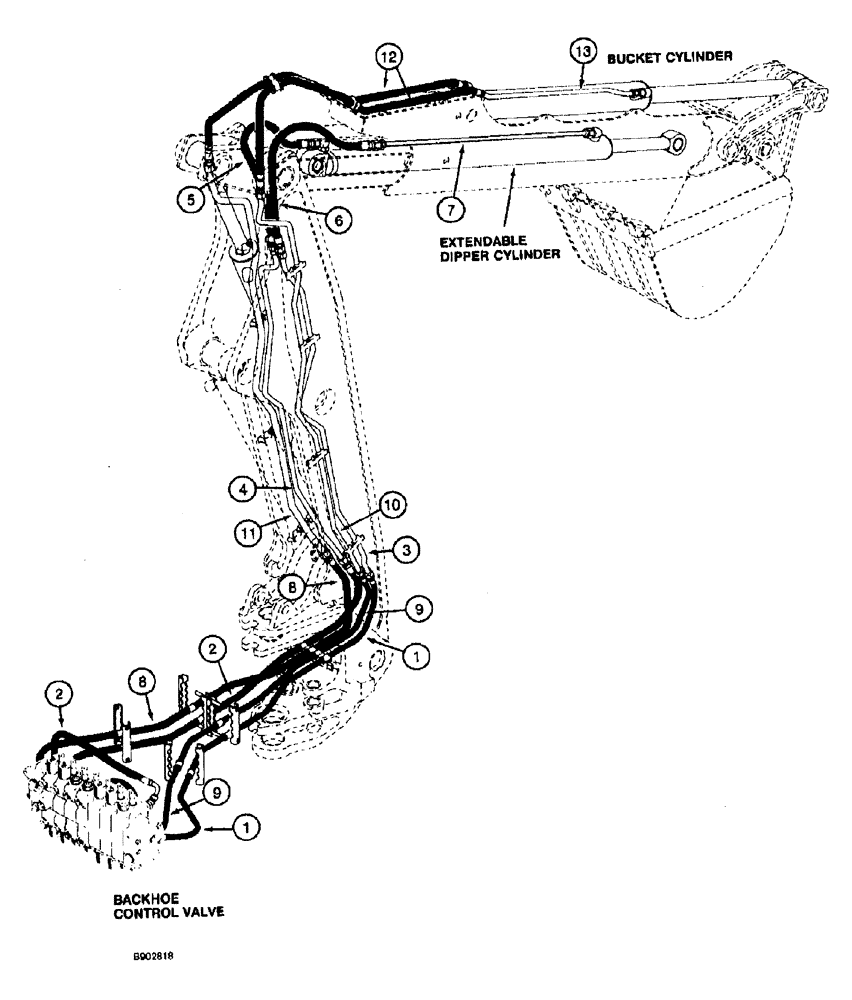

Запчасти Case 590 (1-20) - PICTORIAL INDEX, BACKHOE HYDRAULICS, EXTENDABLE DIPPER (00) - PICTORIAL INDEX

1

Hose at extendable section lower port to boom extendable dipper right-hand tube, Page 8-43

1шт.

2

Hose at extendahoe section upper port to boom extendable dipper left-hand tube, Page 8-43

1шт.

3

Tube at right-hand side of boom to extendable dipper cylinder rod end hose, Page 8-43

1шт.

4

Tube at left-hand side of boom, to extendable dipper cylinder closed end hose, Page 8-43

1шт.

5

Hose at extendable dipper cylinder closed end, Page 8-43

1шт.

6

Hose at extendable dipper cylinder rod end tube, Page 8-43

1шт.

7

Tube at extendable dipper cylinder rod end, Page 8-43

1шт.

8

Hose at upper port of backhoe control valve bucket section, Page 8-39

1шт.

9

Hose at lower port of backhoe control valve bucket section, Page 8-39

1шт.

10

Tube at right-hand side of boom to bucket cylinder rod end hose, Page 8-39

1шт.

11

Tube at left-hand side of boom to bucket cylinder closed end hose, Page 8-39

1шт.

12

Hose to bucket cylinder tubes, Page 8-41

1шт.

13

Tube at hose to bucket cylinder rod end, Page 8-41

1шт.
