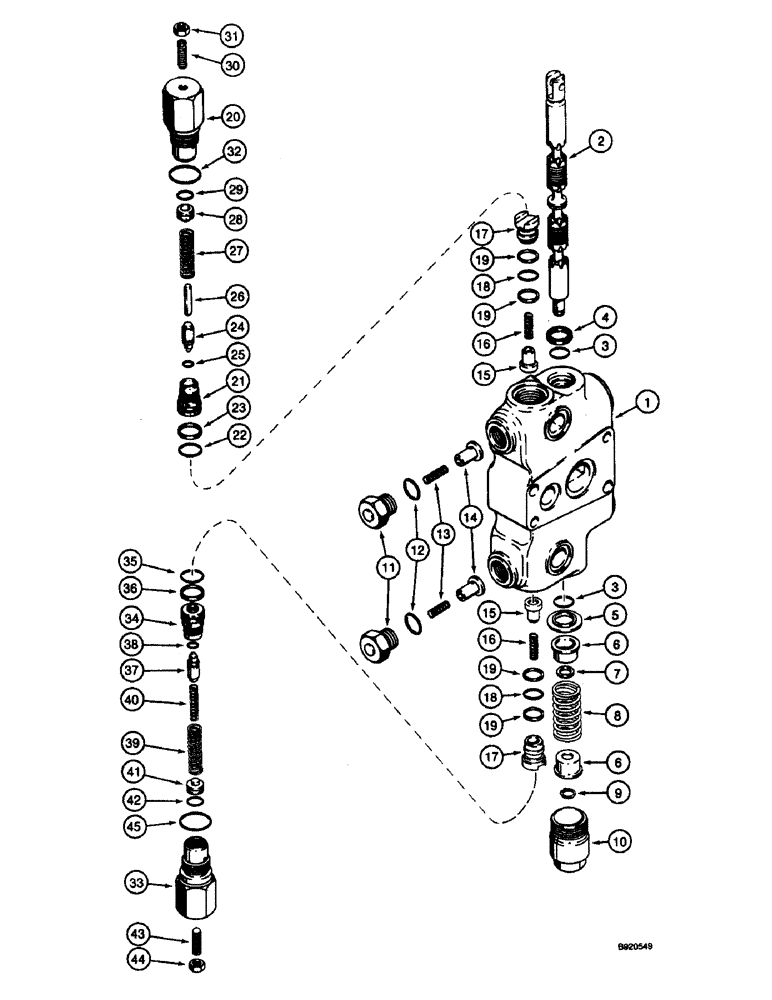

Запчасти Case 590 (8-084) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

1980432C5

VALVE

SECTION ASSEMBLY - boom, with circuit relief and anticavitation valves (replaces 1980432C4), Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - boom section, may have one or two anticavitation valve ports

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool (replaces G108461 O-ring)

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- spool

1шт.

8

1994596C1

SPRING

- centering, spool

1шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

- spool end

1шт.

1346221C1

VALVE

ASSEMBLY - anticavitation (order components), Includes: Ref. 11 - 14

1-2шт.

11

G34937

PLUG

- anticavitation valve

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- anticavitation valve

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - anticavitation valve

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 15 - 19

2шт.

15

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, load check

1шт.

16

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

17

1343708C1

PLUG

- load check

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

19

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G109445

VALVE ASSEMBLY - circuit relief, upper, boom section, used in production, order G109449 kit for service, see below, Includes: Ref. 20 - 32

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

26

NSS

NOT SOLD SEPARAT

PIN - stop, relief

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, includes Ref. 3, 4, 12, 18, 19, 22, 23, and 32 plus additional O-rings not required in this application

1шт.

G109449

KIT

- service for G109445 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve (Ref. 20-32) which is the same as G109445 except with a different pressure setting

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, lower, boom section, used in production, order G110077 kit for service, Includes: Ref. 33 - 45

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - circuit relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

36

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1.

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING - relief, outer

1шт.

40

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

42

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

43

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

SCREW - set, hex socket headless, 5/16 NF x 1-1/4 inch, oval point

1шт.

44

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1.

1шт.

G110077

KIT

- service for G110467 circuit relief valve, kit includes an instruction sheet and G110078 circuit relief valve (Ref. 33 - 45) which is the same as G110467 except with a different pressure setting

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 35, 36 and 45, plus additional O-rings not required for this application

1шт.
