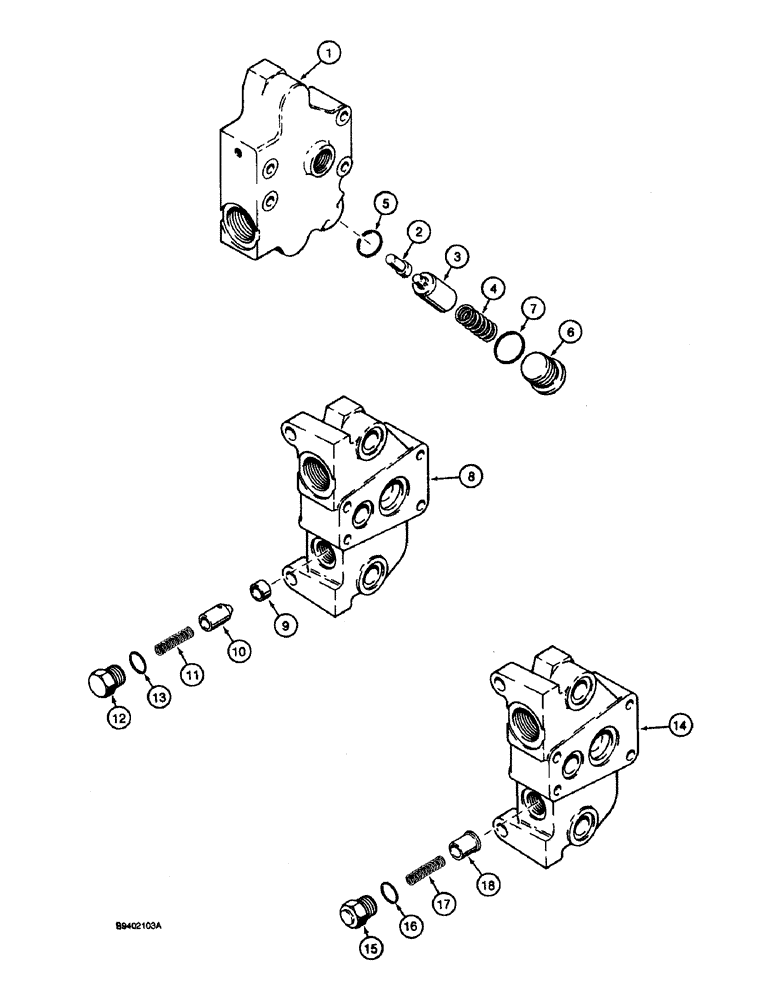

Запчасти Case 590 (8-078) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS, OUTLET SECTION (08) - HYDRAULICS

G109759

VALVE

SECTION ASSEMBLY - outlet, Includes: Ref. 1 - 7

1шт.

1

G109760

HOUSING

MANIFOLD - section body

1шт.

2

G108902

PISTON

- regeneration sensing

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration

1шт.

4

G33112

SPRING

- regeneration spool

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 7

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch wide

1шт.

G109719

ELEMENT

SECTION ASSEMBLY - inlet, if used, Includes: Ref. 8 - 13

1шт.

8

G109718

HOUSING

MANIFOLD - section body, inlet section

1шт.

9

G33104

SEAT

- check valve poppet, inlet section

1шт.

10

G33105

VALVE POPPET

POPPET - check valve, inlet section

1шт.

11

1542669C1

SPRING

- check valve (replaces G33106 spring), inlet section

1шт.

12

A39586

PLUG

- check valve, inlet section

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Inlet section

1шт.

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY - inlet, if used, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, inlet section

1шт.

1346221C1

VALVE

- anticavitation (order components), Includes: Ref. 15 - 18, inlet section

1шт.

15

G34937

PLUG

- check valve, inlet section

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Inlet section

1шт.

17

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve, inlet section

1шт.

18

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve, inlet section

1шт.
