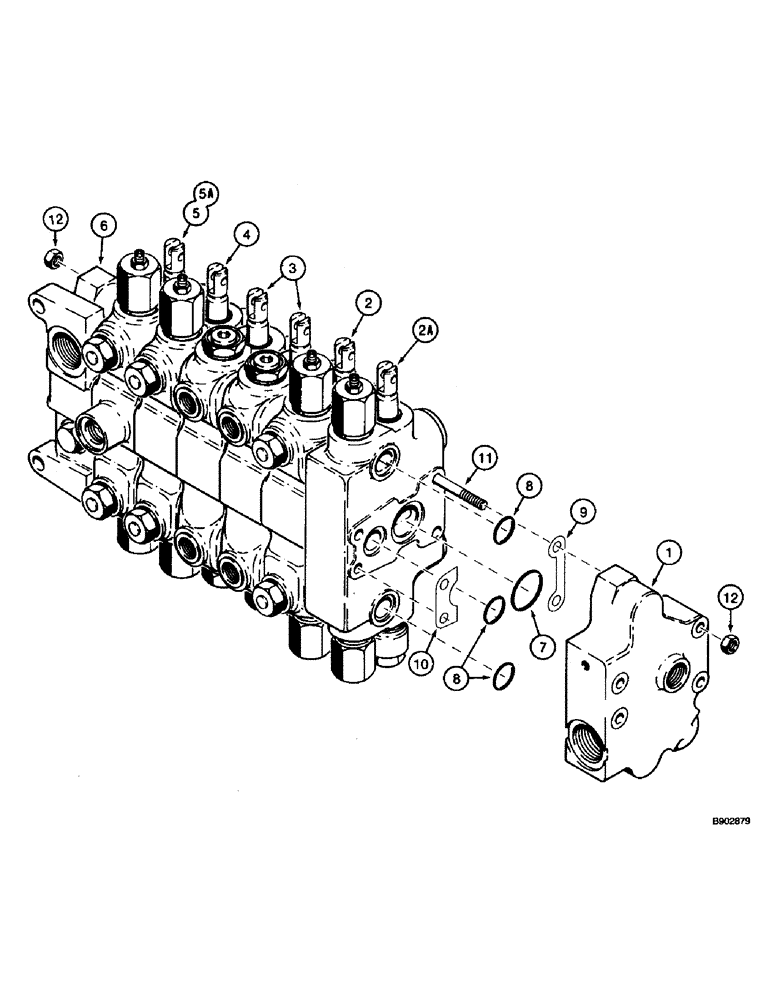

Запчасти Case 590 (8-074) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1994663C2

VALVE

ASSEMBLY - backhoe control, 6 spool, foot swing (replaces 1994663C1), Includes: Ref. 1 - 12

1шт.

1994664C2

VALVE

ASSEMBLY - backhoe control, 6 spool, hand swing (replaces 1994664C1), Includes: Ref. 1 - 12

1шт.

1

G109759

VALVE

SECTION ASSEMBLY - outlet, parts list figure 8-78

1шт.

2

1994667C1

HYD VALVE SECTION

SECTION ASSEMBLY - dipper, parts list figure 8-80

1шт.

2a

1986504C4

VALVE

SECTION ASSEMBLY - bucket, parts list figure 8-80

1шт.

3

G109567

ELEMENT

SECTION ASSEMBLY - stabilizer, left-hand and right-hand, parts list figure 8-82

2шт.

4

1980432C5

VALVE

SECTION ASSEMBLY - boom, parts list figures 8-84 and 8-86 (replaces 1980432C4)

1шт.

5

1980431C4

VALVE

SECTION ASSEMBLY - swing, used with 1994663C1 or 1994663C2, foot swing control valve assembly, with heavy swing spring, parts list figures 8-88 and 8-90

1шт.

5a

1341823C3

ELEMENT

SECTION ASSEMBLY - swing, used with 1994664C1 or 1994664C2, hand swing control valve assembly, parts list figures 8-88 and 8-90

1шт.

6

REF

INSTRUCTION

SECTION ASSEMBLY - inlet, for correct assembly and components, see figure 8-78

1шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

7шт.

Part of seal kit P/N 1346107C1.

1шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

21шт.

Part of seal kit P/N 1346107C1.

1шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

7шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

7шт.

11

G108900

STUD

- tie, 3/8 NC x 16-15/16 inch

4шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

1346107C1

SEAL KIT

KIT - seal, Includes: Ref. 7 and 8, plus additional O-rings not required in this application

1шт.
