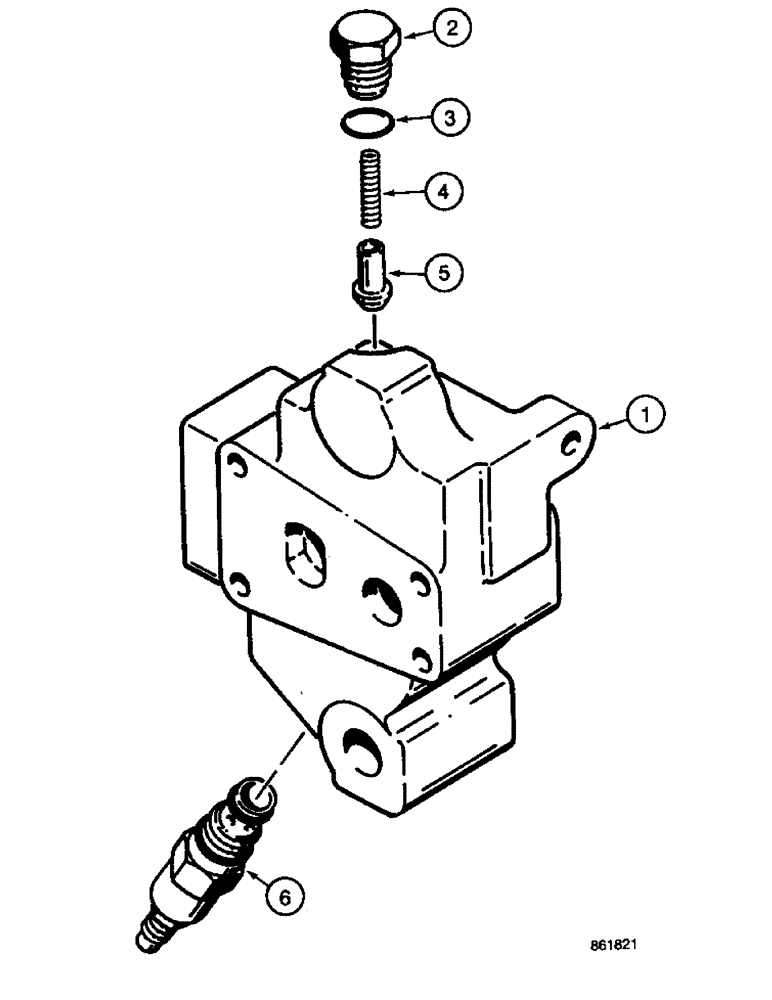

Запчасти Case 590 (8-068) - LOADER CONTROL VALVE, OUTLET SECTION, WITH MAIN RELIEF VALVE (08) - HYDRAULICS

1980436C1

ELEMENT

SECTION ASSEMBLY - two and three spool valves, outlet, with main relief valve, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

2

G109644

PLUG,Hex, 3/4" - 16

- load check

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

- load check

1шт.

5

G109645

VALVE POPPET

POPPET - load check

1шт.

6

1980438C1

VALVE

ASSEMBLY - outlet section, main relief, cartridge, loader control valve, components parts not serviced separately, cartridge must be serviced complete, external O-rings only

1шт.

NSS

NOT SOLD SEPARAT

may be serviced by ordering G110098 seal kit, see below

1шт.

G110098

KIT

- seal, service for external relief valve cartridge seals only, includes (2) O-rings and (1) backup ring which are not serviced separately

1шт.
