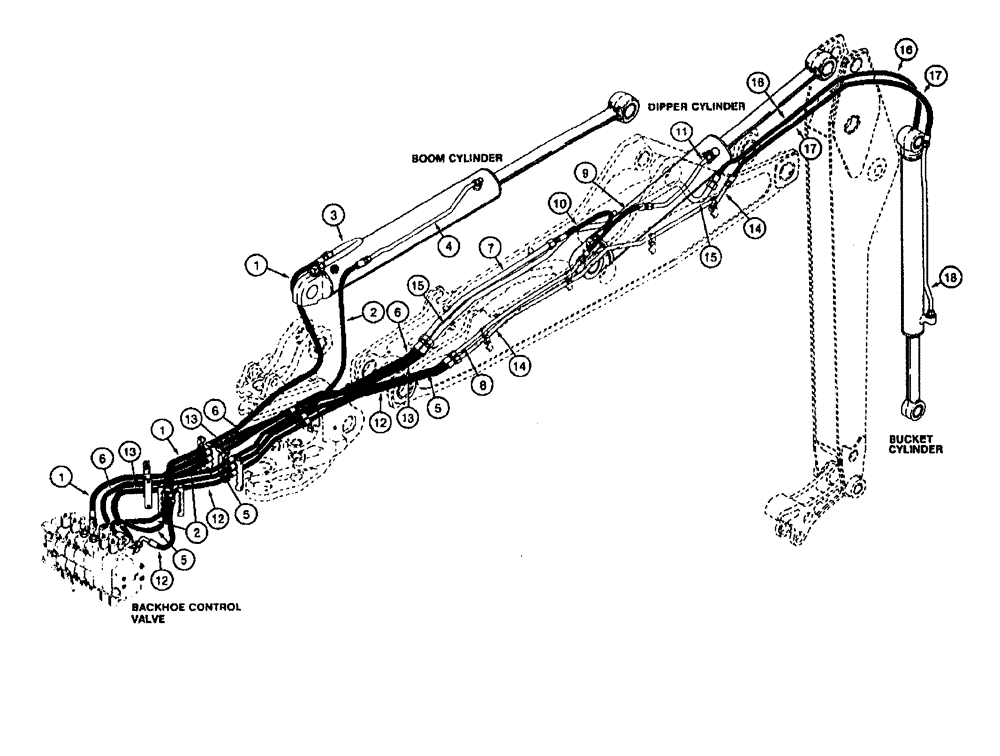

Запчасти Case 590 (1-18) - PICTORIAL INDEX, BACKHOE HYDRAULICS, BOOM, DIPPER, AND BUCKET (00) - PICTORIAL INDEX

1

Hose at upper port of backhoe control valve boom section to boom cylinder closed end, Page 8-29

1шт.

2

Hose at lower port of backhoe control valve boom section to boom cylinde rod end, Page 8-29

1шт.

3

Tube at boom cylinder closed end, Page 8-29

1шт.

4

Tube at boom cylinder rod end, Page 8-29

1шт.

5

Hose at upper port of backhoe control valve dipper section to dipper cylinder rod end tube, Page 8-31

1шт.

6

Hose at lower port of backhoe control valve dipper section to dipper cylinder closed end, Page 8-31

1шт.

7

Tube at left-hand side of boom, from dipper section lower port hose to dipper cylinder closed end hose, Page 8-31

1шт.

8

Tube at right-hand side of boom from dipper section upper port hose, Page 8-31

1шт.

9

Hose at dipper cylinder rod end tube, Page 8-31

1шт.

10

Hose at dipper cylinder closed end, Page 8-31

1шт.

11

Tube at dipper cylinder rod end, Page 8-33

1шт.

12

Hose at upper port of backhoe control valve bucket section, Page 8-35

1шт.

13

Hose at lower port of backhoe control valve bucket section, Page 8-35

1шт.

14

Tube on right-hand side of boom to bucket cylinder rod end hose, Page 8-35

1шт.

15

Tube on left-hand side of boom to bucket cylinder closed end hose, Page 8-35

1шт.

16

Hose at closed end of bucket cylinder, Page 8-37

1шт.

17

Hose at bucket cylinder rod end tube, Page 8-37

1шт.

18

Tube at rod end of bucket cylinder, Page 8-37

1шт.
