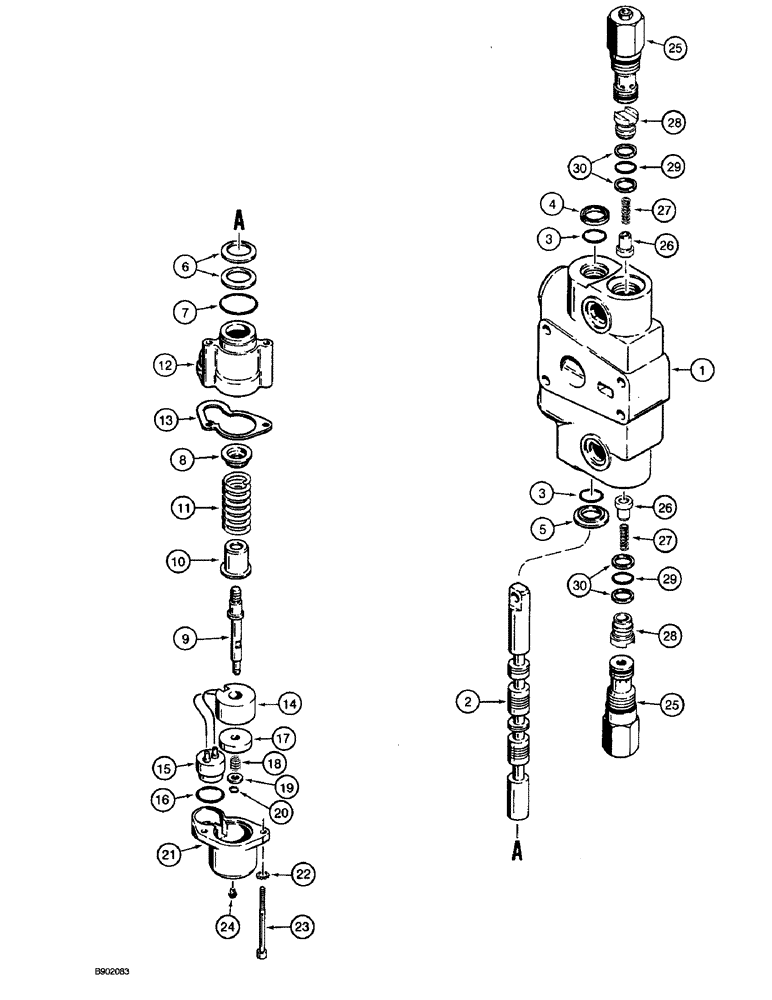

Запчасти Case 590 (8-064) - LOADER CONTROL VALVE, BUCKET SECTION - WITH MAGNETIC DETENT, AND CIRCUIT RELIEF VALVE (08) - HYDRAULICS

1986592C1

VALVE

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valve, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - bucket section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool (replaces G108461 O-ring)

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, spool

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G106452

SPRING WASHER

SPRING - Belleville, washer

2шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Retainer

1шт.

Part of seal kit P/N 1346105C1.

1шт.

8

G106442

SEAT

- centering spring, upper

1шт.

9

G107445

SHAFT

- magnetic detent

1шт.

10

G106441

SEAT

- centering spring, lower

1шт.

11

1986611C1

SPRING

- centering, spool

1шт.

12

G106423

HOUSING

- magnetic detent

1шт.

13

G106443

GASKET

- magnetic detent housing

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY - magnetic detent, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COIL - magnetic detent

1шт.

15

G106450

COIL

CONNECTOR - coil

1шт.

16

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Coil connector

1шт.

Part of seal kit P/N 1346105C1.

1шт.

17

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

- detent

1шт.

18

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

- detent washer

1шт.

19

A50778

WASHER

- shaft

1шт.

20

100-1125

SNAP RING,#25, Ext

Ring, Snap, , washer #25, Ext

1шт.

21

G106424

CAP

- magnetic detent

1шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT - hex socket, No. 10 NC x 2-3/4 inch

2шт.

24

G107780

VALVE, CHECK

VALVE - check, magnetic detent

1шт.

25

G109391

VALVE

ASSEMBLY - circuit relief, one-piece cap, used in production, parts list figure 8-72, order G109449 circuit relief valve kit for service, see page 8-73 for kit

2шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 26 - 30

2шт.

26

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice

1шт.

27

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check

1шт.

28

1343708C1

PLUG

- load check

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Plug (Replaces G110020) -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

30

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 7, 16, 29 and 30

1шт.
