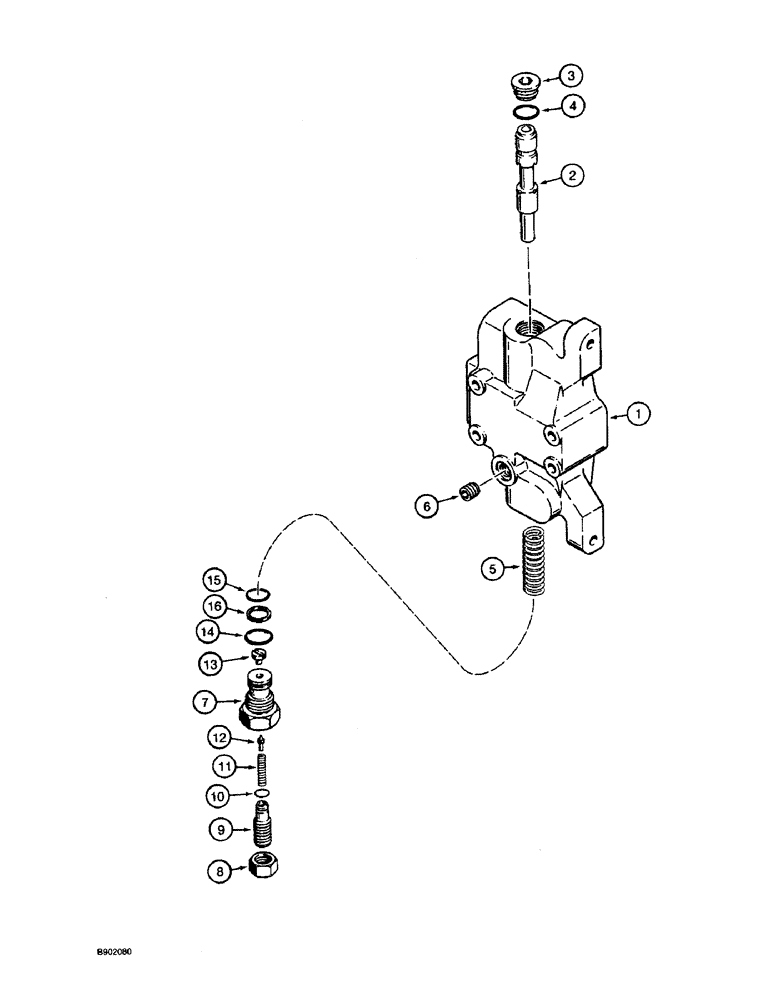

Запчасти Case 590 (8-062) - LOADER CONTROL VALVE, INLET SECTION - WITH STEERING RELIEF VALVE (08) - HYDRAULICS

1980434C1

VALVE

SECTION ASSEMBLY - inlet, with steering relief valve, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - inlet section

1шт.

3

86625138

PLUG,7/18" - 14

Includes Ref. 4 Hex Soc, 7/8"-14 ORB

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

G108877

SPRING

- centering, spool

1шт.

6

1994566C1

PLUG

- orifice, steering port, not required

1шт.

G108868

VALVE PRESSURE RELIE

VALVE ASSEMBLY - relief, steering, Includes: Ref. 7 - 16

1шт.

7

G108866

HOUSING,1-1/16" - 12

- steering relief valve

1шт.

8

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8" NF

1шт.

9

G108867

PLUG

- adjusting, relief valve

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

G109275

SPRING

- steering relief

1шт.

12

G108556

VALVE POPPET

POPPET - steering relief

1шт.

13

G108869

SEAT

- poppet, relief valve

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Housing -018, 90 Duro, .739" ID x .070" Thk

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring, housing

1шт.
