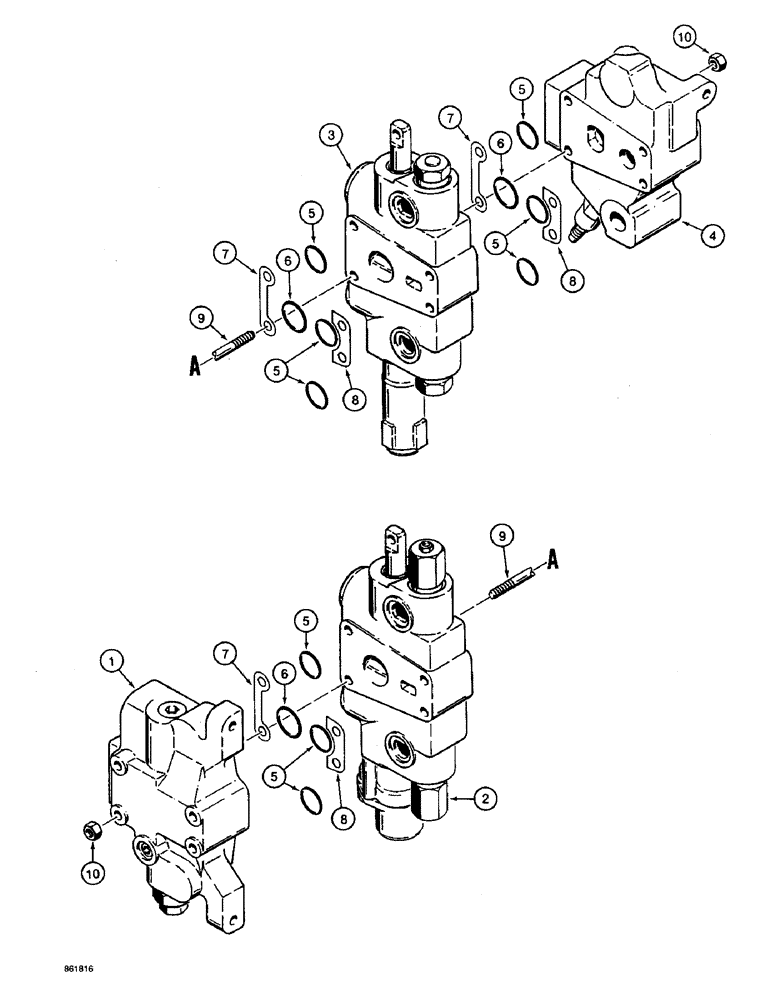

Запчасти Case 590 (8-058) - LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

1340864C1

VALVE, CONTROL

VALVE ASSEMBLY - control, loader, two spool, Includes: Ref. -

1шт.

1

1980434C1

VALVE

SECTION ASSEMBLY - inlet, with steering relief valve, parts list figure 8-62

1шт.

2

1986592C1

VALVE

SECTION ASSEMBLY - bucket, with magnetic detent and circuit relief valve, parts list figure 8-64

1шт.

3

1986591C1

VALVE

SECTION ASSEMBLY - lift, with manual detent, parts list figure 8-66

1шт.

4

1980436C1

ELEMENT

SECTION ASSEMBLY - outlet, with main relief, parts list figure 8-68

1шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

9шт.

Part of seal kit P/N 1346108C1.

1шт.

6

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

3шт.

Part of seal kit P/N 1346108C1.

1шт.

7

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

3шт.

8

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

3шт.

9

G108870

STUD,246.2mm L

- tie, 3/8 NC x 9-3/4 inch

4шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C1

SEAL KIT

KIT - seal, Includes: Ref. 5 and 6, plus additional O-rings not required for this application

1шт.
