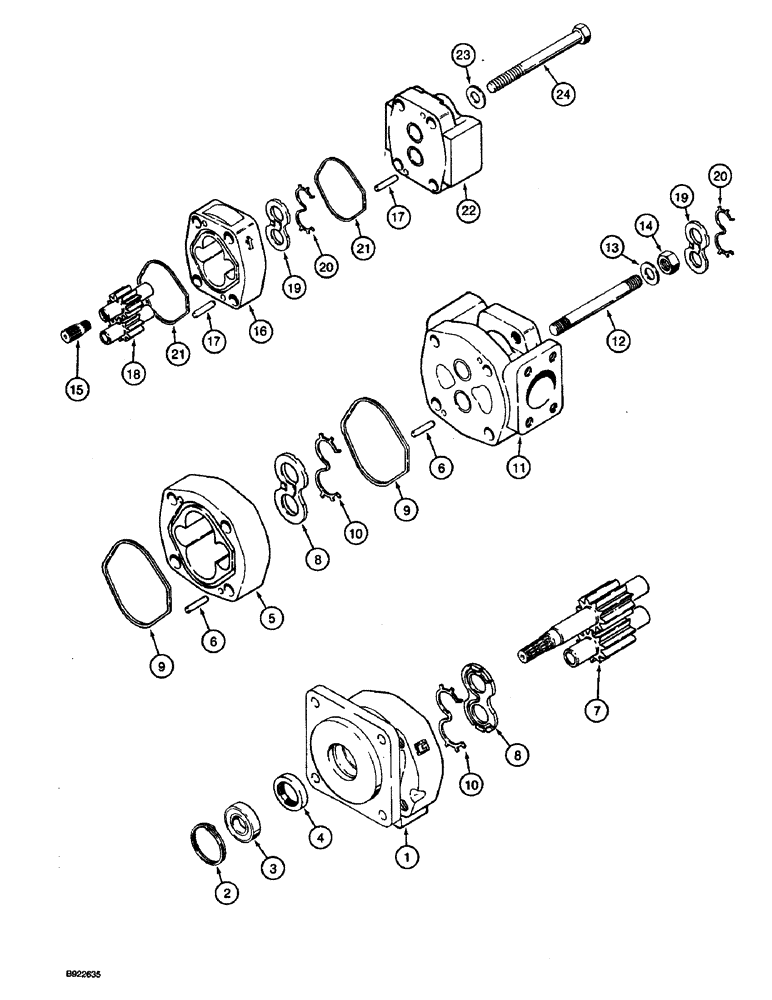

Запчасти Case 590 (8-057A) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

103621A1

PUMP

ASSEMBLY - hydraulic equipment, Commercial Intertech No. 323-9529-028, Includes: Ref. -

1шт.

103621A1R

REMAN-HYD PUMP

590

1шт.

103621A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end, includes bushings which are not serviced separately

1шт.

2

560819R1

SNAP RING,#283, 3.009", Int, Spiral

RING - retaining, shaft bearing, replaces S88756

1шт.

3

S88754

BALL BEARING

BEARING - ball

1шт.

4

L32318

SEAL

- shaft

1шт.

5

111580A1

HOUSING

- gear, shaft end

1шт.

6

W16323

DOWEL

PIN - dowel, gear housing shaft end

4шт.

7

NSS

NOT SOLD SEPARAT

SET - gear, shaft end

1шт.

8

111589A1

LARGE PLATE

PLATE - thrust

2шт.

9

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

- square ring

2шт.

10

111590A1

SEAL

RETAINER - wear plate

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - center, with ports, includes bushings which are not serviced separately not serviced separately

1шт.

12

111583A1

STUD

- 5/8 x 5-1/4 inch

4шт.

13

19-488

WASHER

- special, replaces 3031159R1

4шт.

14

429-1010

NUT,5/8"-11, G8

4шт.

15

111593A1

SHAFT

- connecting

1шт.

16

111585A1

HOUSING

- gear, closed end

1шт.

17

111597A1

ELEC. TERMINAL PIN

PIN - dowel, gear housing closed end

4шт.

18

NSS

NOT SOLD SEPARAT

SET - gear, closed end

1шт.

19

111594A1

LARGE PLATE

PLATE - thrust

2шт.

20

111595A1

SEAL

RETAINER - wear plate

2шт.

21

111596A1

SEAL

- square ring

2шт.

22

NSS

NOT SOLD SEPARAT

COVER - closed end, includes bushings which are not serviced separately

1шт.

23

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, grade 8

4шт.

24

111588A1

WASHER

- special

4шт.
