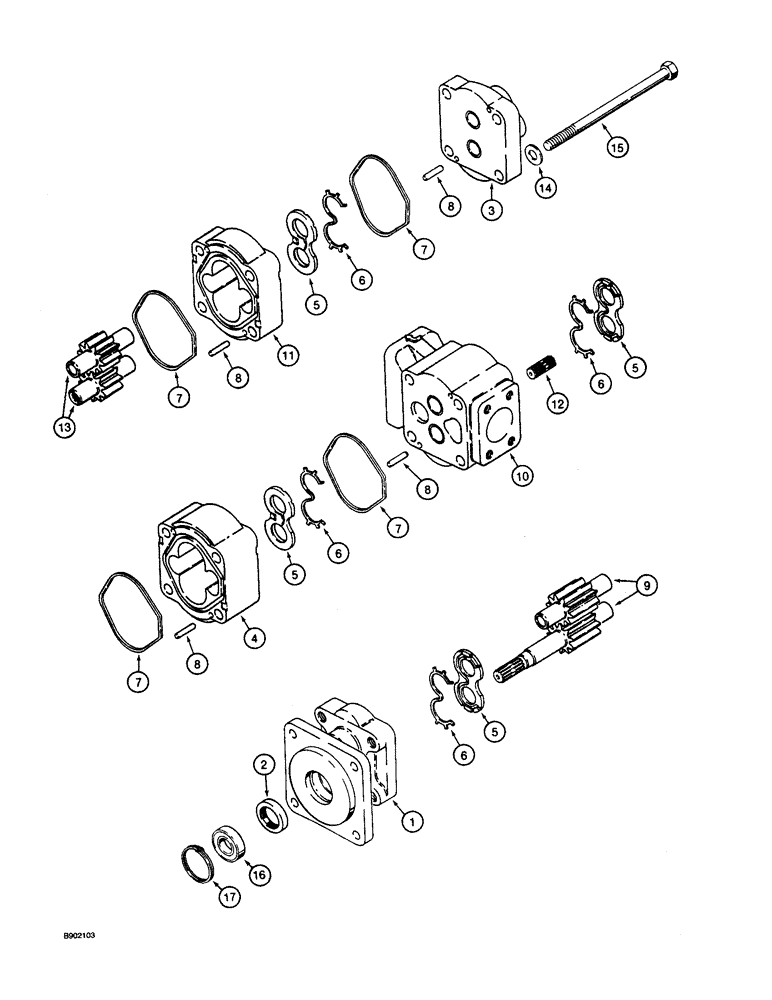

Запчасти Case 590 (8-056) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D149268

PUMP

ASSEMBLY - hydraulic equipment, Commercial Intertech No. 324-9120-176, no longer available, order 103621A1 pump on figure 8-57A and 107486A1 hose on figure 8-6, Ref. 3A, Includes: Ref. 1 - 17

1шт.

103621A1R

REMAN-HYD PUMP

590, Reman for New P/N D149268.

1шт.

117903A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end, includes a bushing which is not serviced separately

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- shaft

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - closed end, includes a bushing which is not serviced separately

1шт.

4

1340774C1

HOUSING

- gear, shaft end

1шт.

5

N13582

THRUST PLATE

PLATE, THRUST

4шт.

6

N13583

SEAL

RETAINER - wear plate

4шт.

7

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- housing, large

4шт.

8

W16323

DOWEL

PIN - dowel, gear housing

8шт.

9

NSS

NOT SOLD SEPARAT

SET - gear, shaft end

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - center, with ports, includes bushings which are not serviced separately

1шт.

11

D147209

HOUSING

- gear, closed end

1шт.

12

N13586

SHAFT

- connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET - gear, closed end

1шт.

14

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- flat, 5/8 inch, hardened

4шт.

15

326-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 8

4шт.

16

3139296R1

BALL BEARING

- ball, sealed

1шт.

17

71466

SNAP RING,#206, 2.190", Int, Spiral

RING - retaining, spring lock

1шт.
