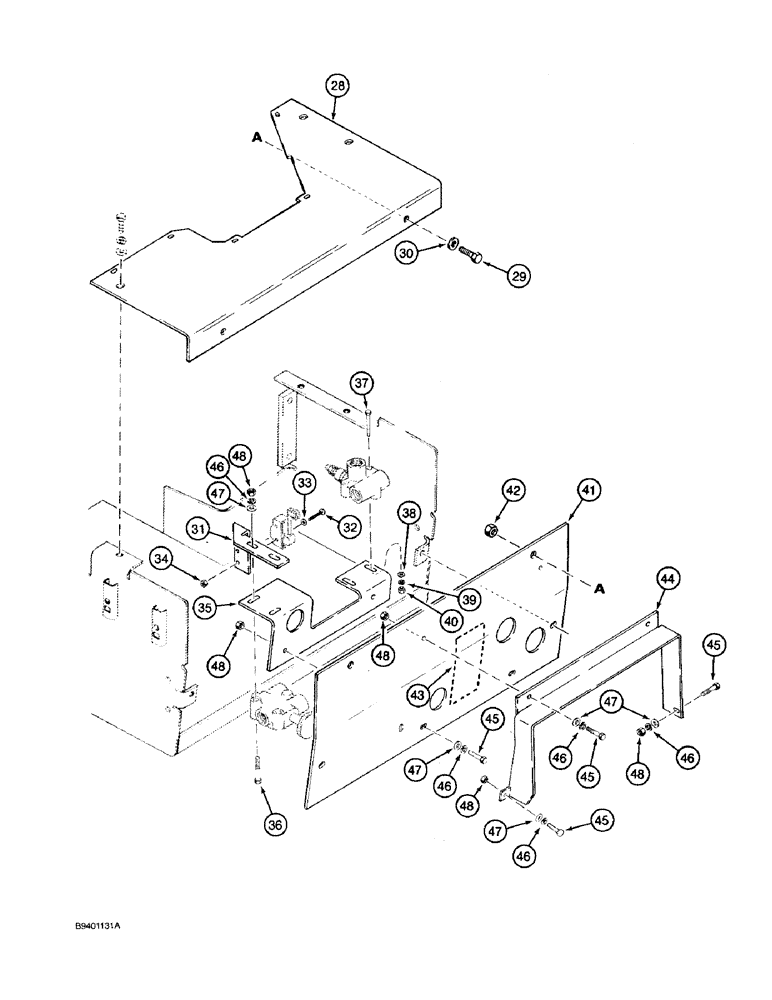

Запчасти Case 590 (8-055C) - HAND HELD TOOL ATTACHMENT HYD. KIT, FOR HAND HELD TOOLS REQUIRING 10GPM OR LESS HYD. FLUID (CONT) (08) - HYDRAULICS

107992A1

KIT

- hand held tool attachment, includes 8-80580 installation instructions, Includes: Ref. 28 - 48 and 1 - 27 figure 8-55A

1шт.

28

D150858

COVER

- top, replaces right-hand valve cover plate, Ref. 8 on figure 9-78

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

31

D150914

BRACKET

- switch mounting

1шт.

32

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

2шт.

33

495-31016

WASHER,#6

2шт.

34

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

35

D150861

BRACKET

- valve mounting

1шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

37

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

38

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

41

D150857

COVER

- front

1шт.

42

131-851

SPRING NUT,Ret, J, 3/8"-16

2шт.

43

D150873

DECAL

- instructional

1шт.

44

D150922

GUARD ASSY.

GUARD - control

1шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

47

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.
