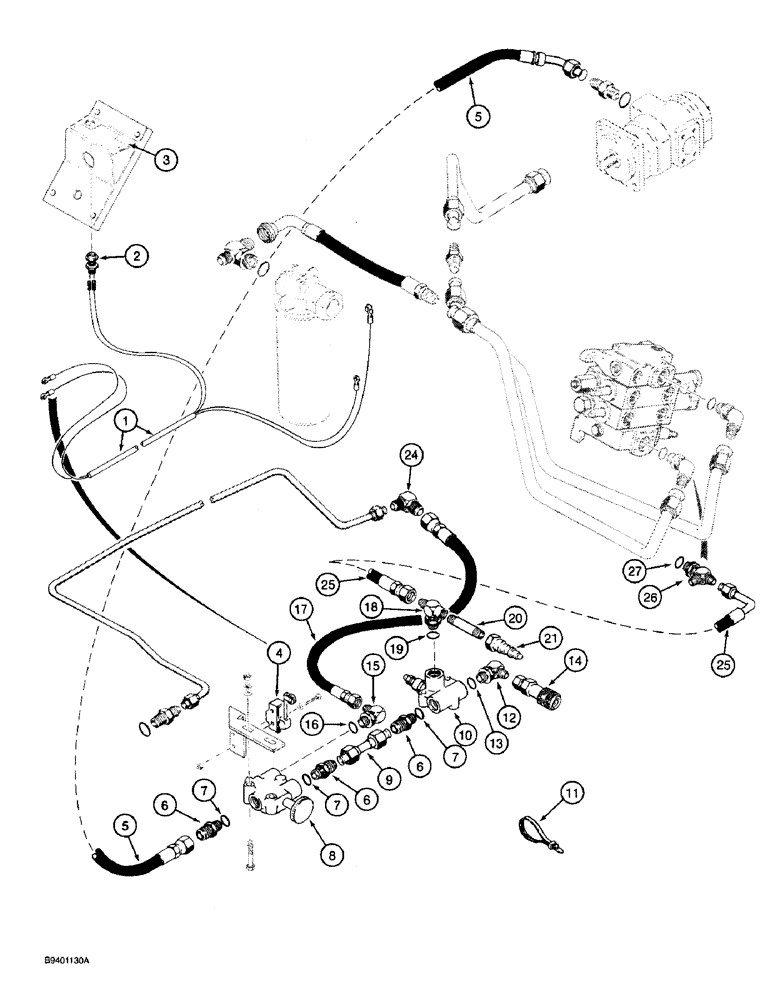

Запчасти Case 590 (8-055A) - HAND HELD TOOL ATTACHMENT HYD. KIT, FOR HAND HELD TOOLS REQUIRING 10GPM OR LESS HYD. FLUID (08) - HYDRAULICS

107992A1

KIT

- hand held tool attachment, includes 8-80580 installation instructions, also includes Ref. on figure 8-55C, Includes: Ref. 1 - 27 and 28 - 48 on figure 8-55B

1шт.

1

D151083

HARNESS

- warning lamp

1шт.

2

H603852

LIGHT

LAMP - warning, oil temperature, mounts in key switch plate, Includes: Ref. 2A

1шт.

2a

114323A1

LENS

- red, not shown

1шт.

3

D150925

DECAL

- Caution, Do not operate unit with red light on, at warning lamp on key switch plate

1шт.

4

D137363

SWITCH

- lamp

1шт.

5

D150799

HOSE

- 106 inch (2700 mm) long, uses existing tube clamp hardware, replaces hose, tube, and adapter at small section of equipment pump, Ref. 3-4 on figure 8-6

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

D150656

VALVE

- selector, component parts not serviced separately

1шт.

9

D150746

PIPE

TUBE - selector valve to relief valve

1шт.

10

D150657

VALVE

- relief, component parts not serviced separately

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

12

218-5304

FITTING

ELBOW - 90 degree, 7/8-14 inch adj. O-ring boss x 1/2 inch PT, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

H436396

COUPLING

QUICK DISCONNECT - female, includes F62075 O-ring, replaces T40265

1шт.

15

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

D150800

HOSE

- 61 inch (1550 mm) long, selector valve to backhoe tube

1шт.

18

D150797

FITTING

TEE - return, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

221-192

PIPE,Nipple, 1/2" NPT x 3"

NIPPLE - straight, 1/2 PT x 3 inch

1шт.

21

1272770C2

COUPLING, BREAK AWAY

QUICK DISCONNECT - male, replaces T41332

1шт.

22

T40274

CAP

PLUG - dust, not shown

1шт.

23

T40759

PLUG

- dust, quick disconnect, not shown

1шт.

24

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree, 7/8-14 inch flare, attaches to existing tube at backhoe valve, Ref. 6 on figure 8-6

1шт.

25

D150801

HOSE

- 16 inch (425 mm) long, relief valve to loader valve

1шт.

26

D150778

TEE

- return, at loader valve, Includes: Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.
