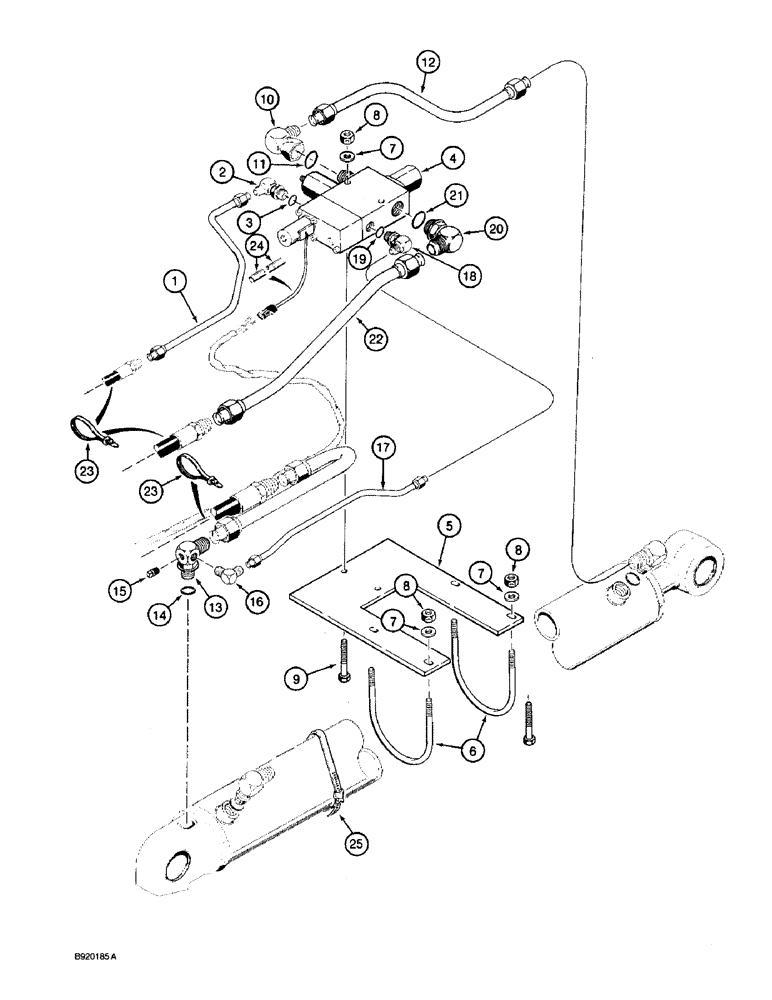

Запчасти Case 590 (8-054) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, AT RIGHT HAND BOOM CYLINDER (08) - HYDRAULICS

D104570

KIT

- backhoe boom lock, Includes: Ref. 1 - 25

1шт.

1

D150182

TUBE

- drain, attaches to Ref. 5 hose on figure 8-52

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring, Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D150443

VALVE

ASSEMBLY - boom lock, parts list figure 8-96, solenoid wire connector attaches to Ref. 8 boom lock harness on figure 8-52

1шт.

5

D150054

PLATE

- Valve mounting

1шт.

6

D150053

BOLT

U-BOLT - 3/8 inch

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

6шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

10

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch swivel flare, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

D150051

TUBE

- lock valve to right-hand boom cylinder rod end, see figure 8-28, Ref. 29 for elbow

1шт.

13

D132008

ELBOW

- 90 degree, special, attaches to existing tube and hose at boom cylinder closed end, Ref. 14 and 28 on figure 8-28, Includes: Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

15

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (replaces 221-849)

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

17

D150047

TUBE

- cylinder closed end to pilot port on boom lock valve

1шт.

18

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj. O-ring, Includes: Ref. 19

1шт.

20

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj. O-ring, Includes: Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

22

D150136

TUBE

- attaches to hose at lower boom port of backhoe valve, see figure 8-28, Ref. 15 for hose

1шт.

23

D147773

CLAMP

STRAP - tie, double hose

2шт.

24

D121385

PLASTIC-RUBBER TUBE

GUARD - harness protection

1шт.

25

214-14104

HOSE CLAMP,155.45mm - 177.8mm

CLAMP, HOSE, , Adj., Tube to cylinder eye #104, 6.12/7.00 Type F Worm

2шт.

Not included in D104570 kit, may purchase separately.

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
