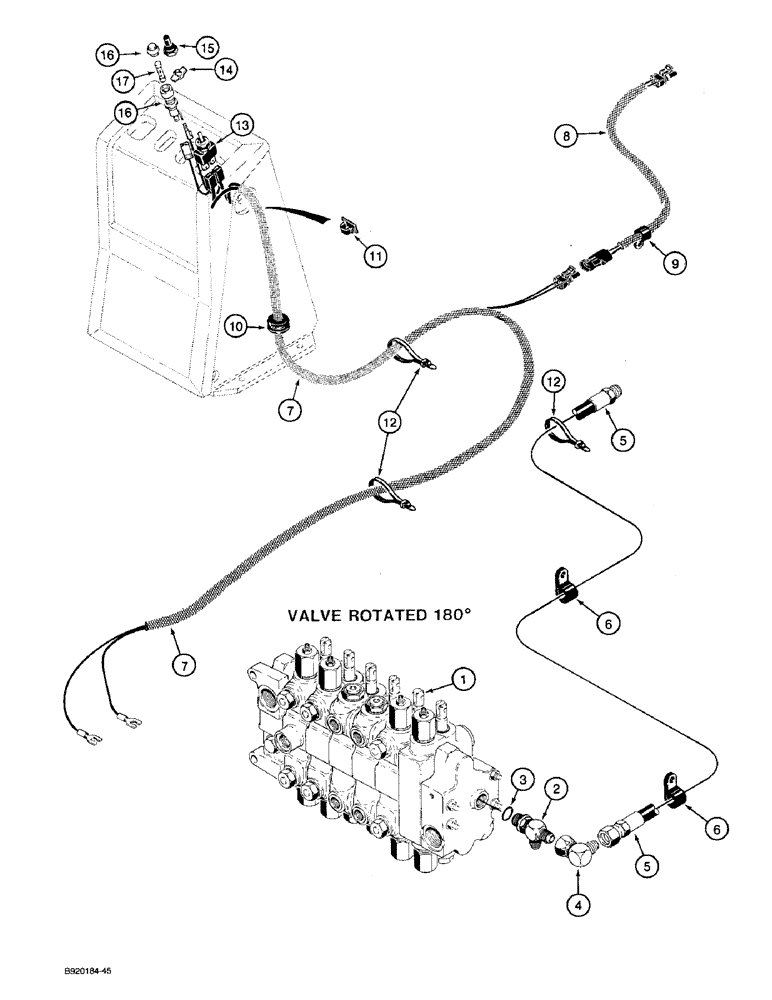

Запчасти Case 590 (8-052) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT, AT CONTROL TOWER AND BACKHOE VALVE (08) - HYDRAULICS

D104570

KIT

- backhoe boom lock, also includes parts on figure 8-52, L111356 decal on figure 9-152 and 131-1402 nut (Ref. 38) on figure 8-29, plus an instruction sheet plus an instruction sheet, Includes: Ref. 1 - 3

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see figure 8-74 or 8-76, for valve mounting see figure 8-22

1шт.

Not included in D104570 kit, may purchase separately.

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.

5

D150324

HOSE

- backhoe valve return

1шт.

6

T50103

CLAMP

- P-type, return hose

2шт.

7

D150390

HARNESS

- boom lock, at control tower to relay under side console

1шт.

8

D149552

HARNESS

- boom lock, boom lock valve solenoid to control tower boom lock harness

1шт.

9

49836

CLAMP

- P-type, harness

2шт.

Not included in D104570 kit, may purchase separately.

1шт.

10

D139845

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness

1шт.

Not included in D104570 kit, may purchase separately.

1шт.

11

L100659

CLIP

- harness

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

13

D67251

SWITCH

- toggle, boom lock

1шт.

14

L105735

PLATE ASSY.

PLATE - trim

1шт.

15

L101998

BOOT

- toggle switch

1шт.

16

376852R91

HOUSING

RETAINER - fuse, at backhoe control tower, replaces A22874

1шт.

17

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere, boom lock

1шт.
