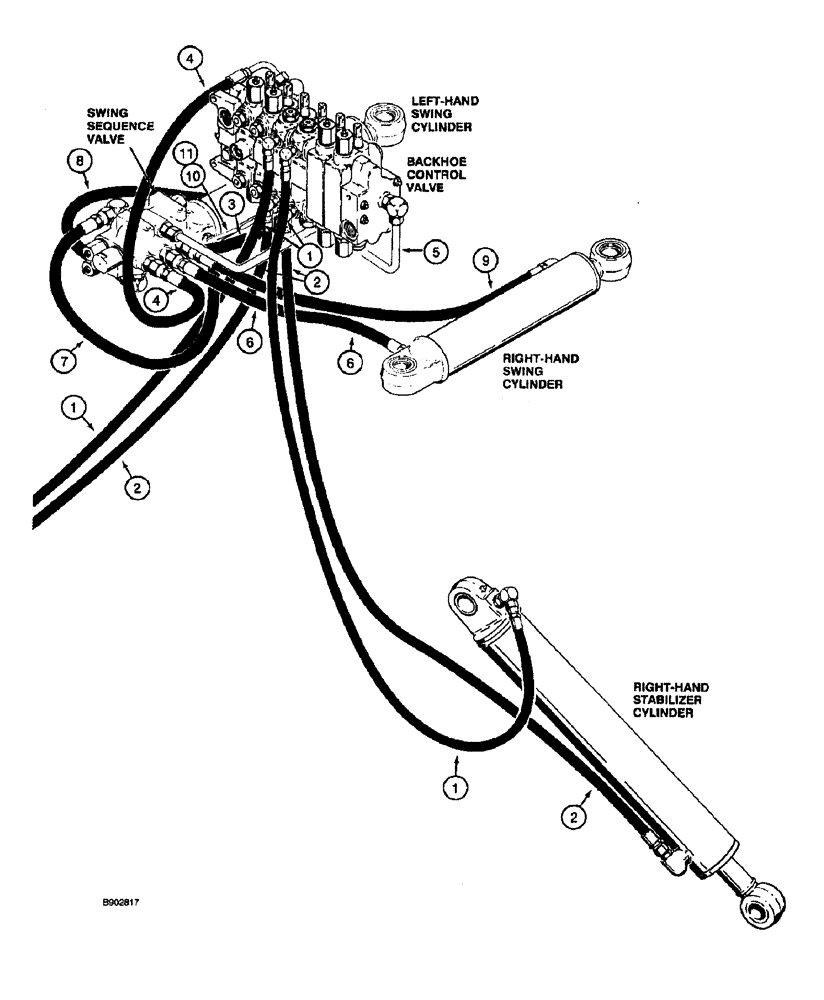

Запчасти Case 590 (1-16) - PICTORIAL INDEX, BACKHOE HYDRAULICS, STABILIZER CYLINDER, SWING CYLINDER, AND SWING SEQUENCE VALVE (00) - PICTORIAL INDEX

1

Hose at upper port of backhoe control valve to stabilizer cylinder closed end, Page 8-23

1шт.

2

Hose at lower port of backhoe control valve to stabilizer cylinder rod end, Page 8-23

1шт.

3

Hose at swing section lower port to swing sequence valve lower port, Page 8-25

1шт.

4

Hose at swing section upper port to swing sequence valve upper, Page 8-25

1шт.

5

Swing sequence valve drain tube, Page 8-25

1шт.

6

Hose at swing sequence valve to right-hand swing cylinder closed end, Page 8-25

1шт.

7

Hose at swing sequence valve to left-hand swing cylinder closed end, Page 8-27

1шт.

8

Hose at swing sequence valve to left-hand swing cylinder rod end, Page 8-27

1шт.

9

Hose at swing sequence valve to right-hand swing cylinder rod end, Page 8-27

1шт.

10

Grease tube for right-hand swing cylinder, Page 8-27

1шт.

11

Grease tube for left-hand swing cylinder, Page 8-27

1шт.
