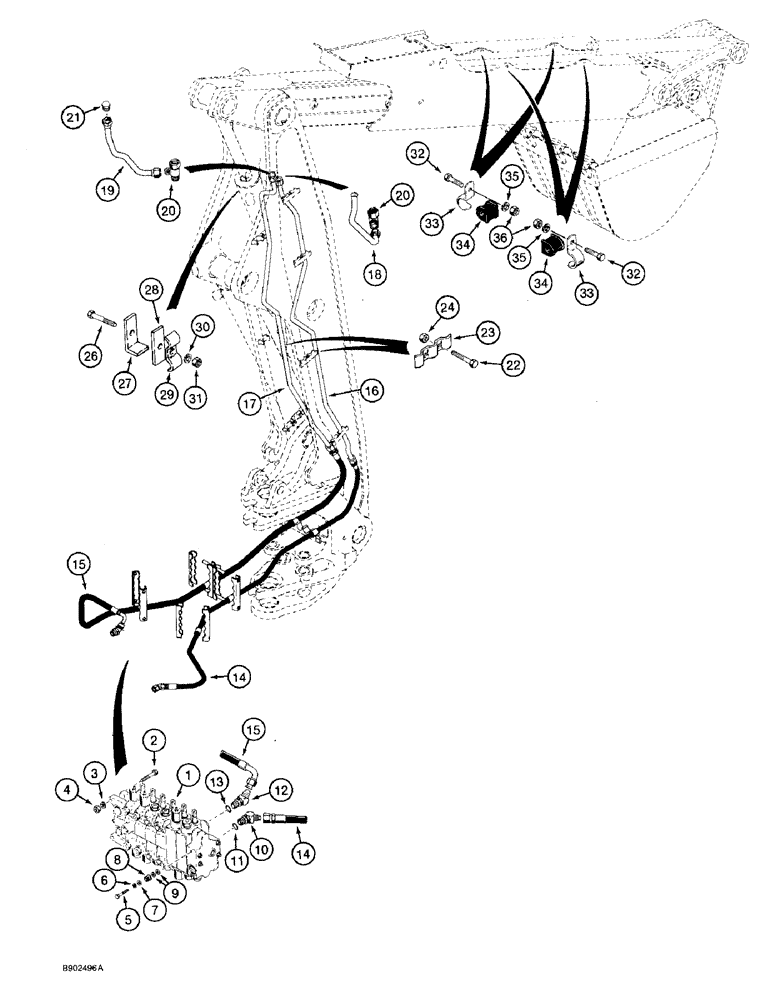

Запчасти Case 590 (8-050) - BACKHOE AUXILIARY HYDRAULIC CIRCUIT, FOR OPTIONAL REAR HYD. ATTACHMENTS, W/ EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, 7 spool, for correct assembly and components see figure 8-76, used on models with extendable dipper or auxiliary hydraulics

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, Incl. Ref 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

- 1350 mm long, extendahoe section lower port to boom extendable dipper right-hand tube

1шт.

15

D144933

HOSE,19.05mm ID x 1560mm L

- 1560 mm long, extendahoe section upper port to boom extendable dipper left-hand tube

1шт.

16

D149541

TUBE

- right-hand side of boom to rear attachment hose

1шт.

17

D149539

TUBE

- left-hand side of boom to rear attachment hose

1шт.

18

D149490

TUBE

- right-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

19

D149492

TUBE

- left-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

20

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1-1/16-12 inch fl branch x flare x adj straight thread

2шт.

21

218-777

PLUG,1 1/16"-12, 37 Degree

- hex, 1-1/16-12 inch flare, not required when rear attachment hoses are installed

2шт.

22

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1-1/2 inch

2шт.

23

D149142

CLAMP

- tube

2шт.

24

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

26

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

D149310

CLAMP

- tube, outer

2шт.

28

D149351

BAR

CLAMP - tube, intermediate

2шт.

29

D149143

SHIN

CLAMP - tube, inner

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

33

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- hose

4шт.

34

D67297

BLOCK

INSULATOR - 1 inch

4шт.

35

492-11038

LOCK WASHER,3/8"

4шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.
