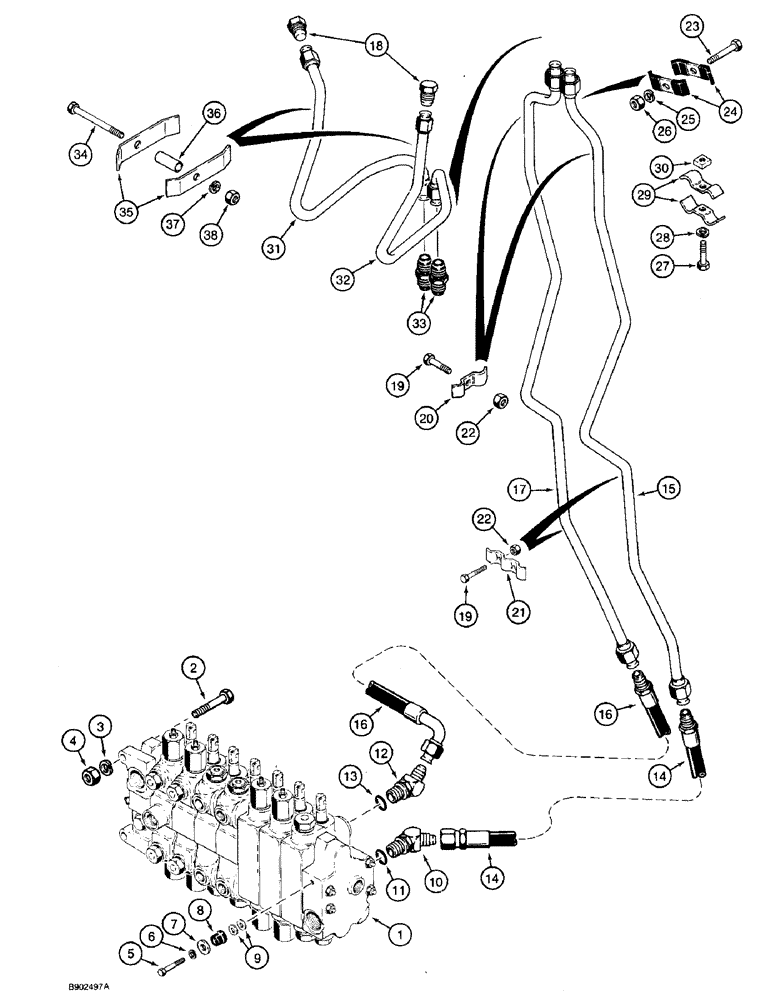

Запчасти Case 590 (8-046) - BACKHOE AUX. HYD. CIRCUIT, FOR OPTIONAL REAR HYD. ATTACHMENTS, W/O EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, 7-spool, for correct assembly and components, see parts list figure 8-76, used on models with extendable dipper or auxiliary hydraulics

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, auxiliary section lower port, Incl. Ref 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, auxiliary section upper port, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

- 1350 mm long, includes three metal hose sleeves, auxiliary section lower port to boom auxiliary right-hand tube

1шт.

15

D149541

TUBE

- right-hand side of boom to rear attachment tube

1шт.

16

D144933

HOSE,19.05mm ID x 1560mm L

- 1560 mm long, includes three metal hose sleeves, auxiliary section upper port to boom auxiliary left-hand tube

1шт.

17

D149539

TUBE

- left-hand side of boom to rear attachment tube

1шт.

18

218-777

PLUG,1 1/16"-12, 37 Degree

- hex, 1-1/16-12 inch flare, tube, not required when rear attachment hoses are installed

2шт.

19

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1-1/2 inch

4шт.

20

D149143

SHIN

CLAMP - auxiliary tube to bucket tube on boom

2шт.

21

D149142

CLAMP

- tube

2шт.

22

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

24

D143846

CLAMP

- Hose

2шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

D149143

SHIN

CLAMP -, Serial Range: hose-dipper

2шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

30

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

31

D150249

TUBE

- left-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

32

D150251

TUBE

- right-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

33

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

2шт.

34

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

35

D143426

CLAMP

- tube

4шт.

36

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- tube clamp

2шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.
