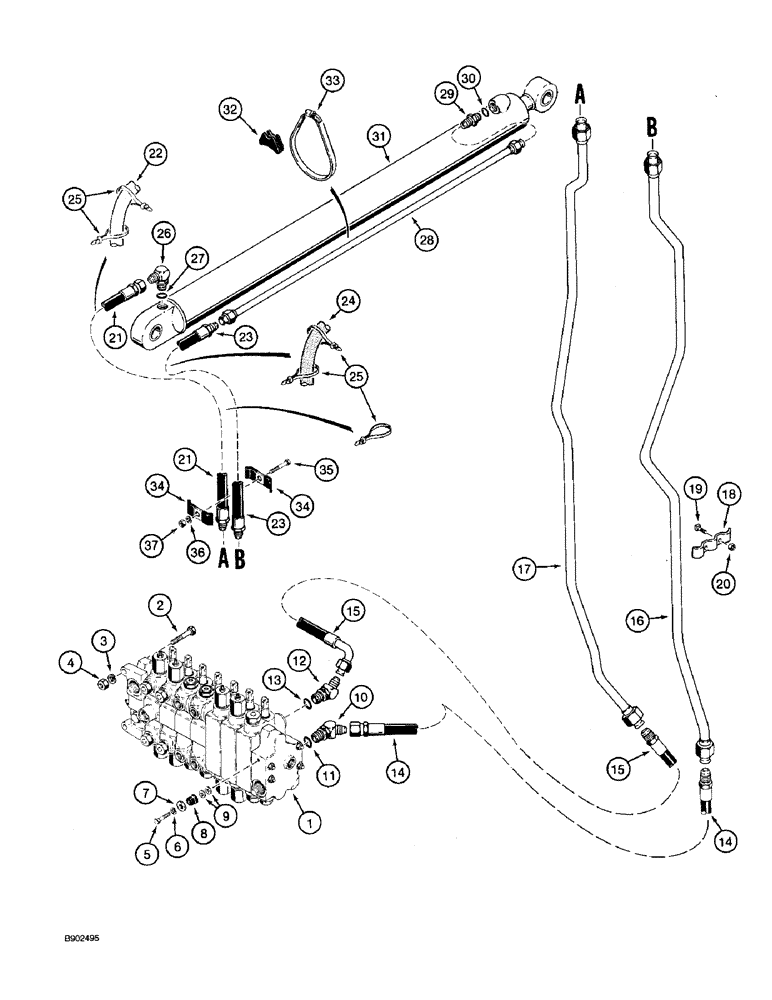

Запчасти Case 590 (8-042) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendahoe, for correct assembly and components see figure 8-76

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, extendable dipper section lower port, Incl. Ref 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, extendable dipper section upper port, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

- 1350 mm long, includes three metal hose sleeves, extendahoe section lower port to boom extendable dipper, right-hand tube

1шт.

15

D144933

HOSE,19.05mm ID x 1560mm L

- 1560 mm long, includes three metal hose sleeves, extendahoe section upper port to boom extendable dipper left-hand tube

1шт.

16

D149537

TUBE

- right-hand side of boom, to extendable dipper cylinder rod end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-050.

1шт.

17

D149535

TUBE

- left-hand side of boom, to extendable dipper cylinder closed end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-050.

1шт.

18

D149142

CLAMP

- boom tubes, plated, 3 Tubes

2шт.

18

D149141

CLAMP

- boom tubes, plated, 2 Tubes

2шт.

19

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

- square, 3/8 NC x 1 inch, grade 8

4шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

21

D144813

HOSE

- 788 mm long, extendable dipper cylinder closed end

1шт.

22

D134729

SLEEVE

- hose guard, 625 mm long, cylinder closed end hose, cut to required length from D134728 bulk sleeve

1шт.

23

D144812

HOSE

- 938 mm long, extendable dipper cylinder rod end

1шт.

24

D134728

TUBE

SLEEVE - hose guard, cylinder rod end hose

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, cylinder closed end

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

D144902

TUBE

- extendable dipper cylinder rod end

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

D134728

TUBE

SLEEVE - 725 mm long, bulk

1шт.

31

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

ASSEMBLY - extendable dipper, parts list figure 8-126

1шт.

32

D38648

BLOCK

INSULATOR - rubber

1шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #64, 3.56/4.50 Type F Worm

1шт.

34

D143846

CLAMP

- Hose

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

36

492-11038

LOCK WASHER,3/8"

1шт.

37

425-106

NUT,3/8"-16, Cl 5

1шт.
