(8-040) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (CONT)

Запчасти Case 590 (8-040) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (CONT) (08) - HYDRAULICS

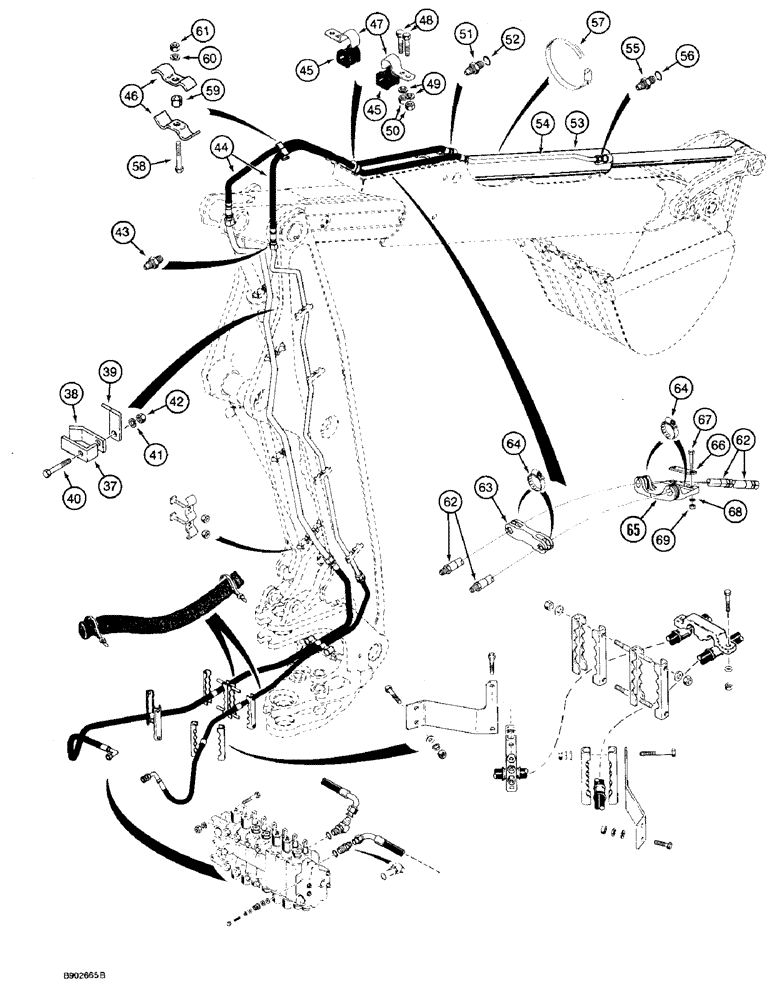

Схема запчастей Case 590 - (8-040) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (CONT) (08) - HYDRAULICS
38
43
54
57
50
37
67
63
62
47
45
51
39
62
44
64
41
45
53
58
48
49
40
68
69
42
56
64
60
59
55
66
65
52
46
61
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

D149310

CLAMP

- tube, outer

2шт.

38

D149309

CLAMP

- tube, intermediate

2шт.

39

D149308

CLAMP,12mm ID, 10.5mm Bolt Hole, J Type

- tube, inner

2шт.

40

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

41

492-11038

LOCK WASHER,3/8"

2шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.

43

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

44

D149397

HOSE,19.05mm ID x 2300mm L

- 2300 mm long, to bucket cylinder tubes, used with metal clamps, if used

2шт.

45

D67297

BLOCK

INSULATOR - vibration, if used

2шт.

46

D42833

CLAMP

- hose, if used

2шт.

47

D149390

CLAMP

- hose, if used

2шт.

48

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

4шт.

49

492-11038

LOCK WASHER,3/8"

4шт.

50

425-106

NUT,3/8"-16, Cl 5

4шт.

51

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 52

1шт.

52

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

53

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, for correct assembly and components, see figure 8-122 or 8-124

1шт.

54

D149398

TUBE

- hose to bucket cylinder, rod end

1шт.

55

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring, Incl. Ref. 56

1шт.

56

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

57

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

1шт.

58

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

1шт.

59

D149944

SPACER

- clamp, if used

1шт.

60

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

61

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

62

109020A1

HOSE,19.05mm ID x 2300mm L

- 2300 mm long, to bucket cylinder tubes, used with rubber clamps, if used

2шт.

63

103670A1

CLAMP,27mm ID

CLAMP - hose, rubber, if used

1шт.

64

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - hose, if used

4шт.

65

103270A1

SHIN

SUPPORT - hose, if used

1шт.

66

101479A1

SUPPORT

PLATE - hose support, if used

1шт.

67

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

68

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

69

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.
