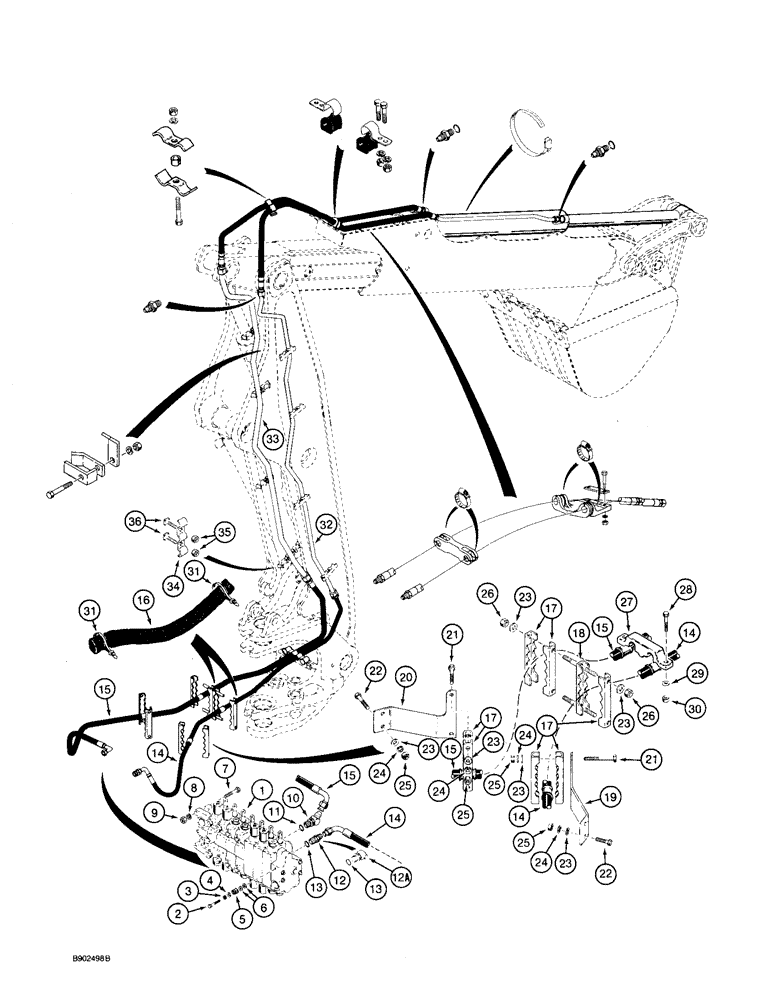

Запчасти Case 590 (8-038) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components see figure 8-76

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, bucket section upper port, Incl. Ref 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, bucket section lower port, if used

1шт.

12a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, bucket section lower port, if used, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D140152

HOSE,15.88mm ID x 1525mm L

- 1525 mm long, includes three metal hose sleeves, bucket section lower port

1шт.

15

D144804

HOSE,19.05mm ID x 1590mm L

- 1590 mm long, includes three metal hose sleeves, bucket section upper port

1шт.

16

D132054

SLEEVE

- hose guard, 500 mm long, cut to required length from D134728 bulk sleeve

2шт.

17

D144914

CLAMP

- hose, metal

7шт.

18

D144915

CLAMP

- with studs, metal

1шт.

19

D144912

BRACKET

- right-hand side, support, rear hose clamps

1шт.

20

D144913

BRACKET

- left-hand side, support, rear hose clamps

1шт.

21

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

12шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

26

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

4шт.

27

D144965

CLAMP

- hose, mounts to swing tower

1шт.

28

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

30

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

32

D149494

TUBE

- right-hand side of boom, to bucket cylinder rod end hose

1шт.

33

D149496

TUBE

- left-hand side of boom, to bucket cylinder closed end hose

1шт.

34

D149142

CLAMP

-, Serial Range: tube-boom

1шт.

35

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

36

117-209

SQUARE BOLT,3/8" - 16 x 1 1/4", Gr 8

- square, 3/8 NC x 1-1/4 inch, grade 8

2шт.

D134728

TUBE

SLEEVE - 725 mm long, bulk

1шт.
