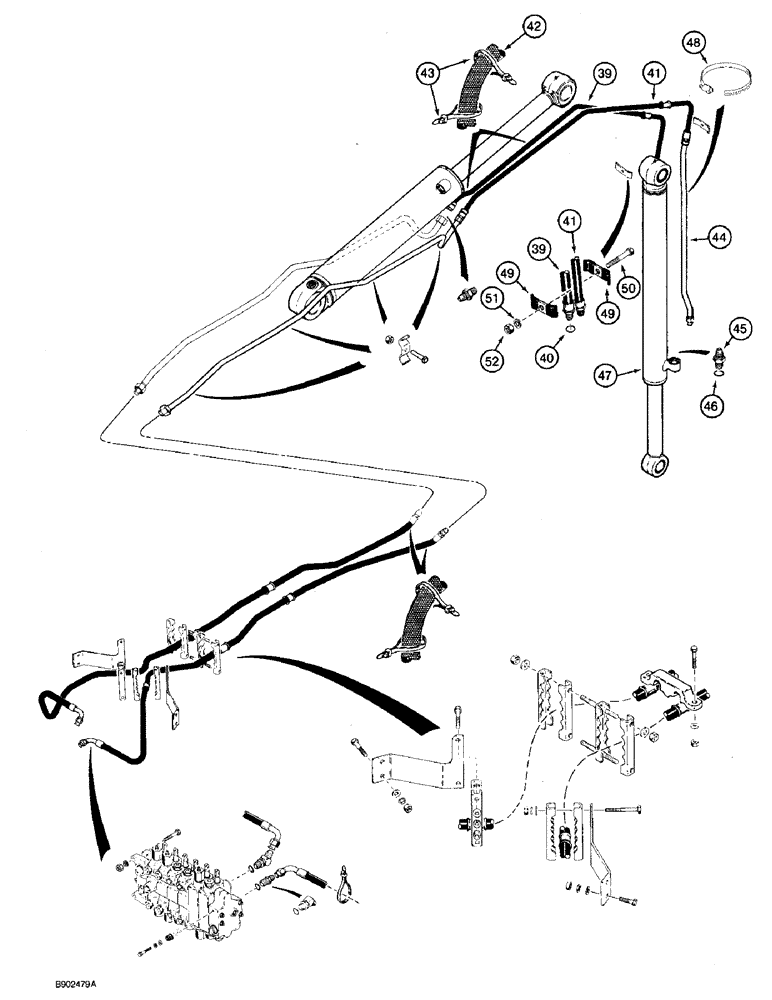

Запчасти Case 590 (8-036) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (CONT) (08) - HYDRAULICS

39

D149252

HOSE

- 1185 mm long, to closed end of bucket cylinder, Includes: Ref. 40

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figures 8-046 and 8-048.

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, at closed end port of bucket cylinder

1шт.

41

D149278

HOSE

- 1210 mm long, to bucket cylinder rod end tube

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figures 8-046 and 8-048.

1шт.

42

D134728

TUBE

SLEEVE - hose guard, 725 mm long

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

44

D141248

TUBE

- to rod end of bucket cylinder

1шт.

45

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, to rod end of bucket cylinder, Incl. Ref. 46

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

47

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, for correct assembly and components, see figure 8-122 or 8-124

1шт.

48

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #72, 4.06/5.00 Type F Worm

1шт.

49

D143846

CLAMP

- Hose

2шт.

50

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

51

492-11038

LOCK WASHER,3/8"

1шт.

52

425-106

NUT,3/8"-16, Cl 5

1шт.
