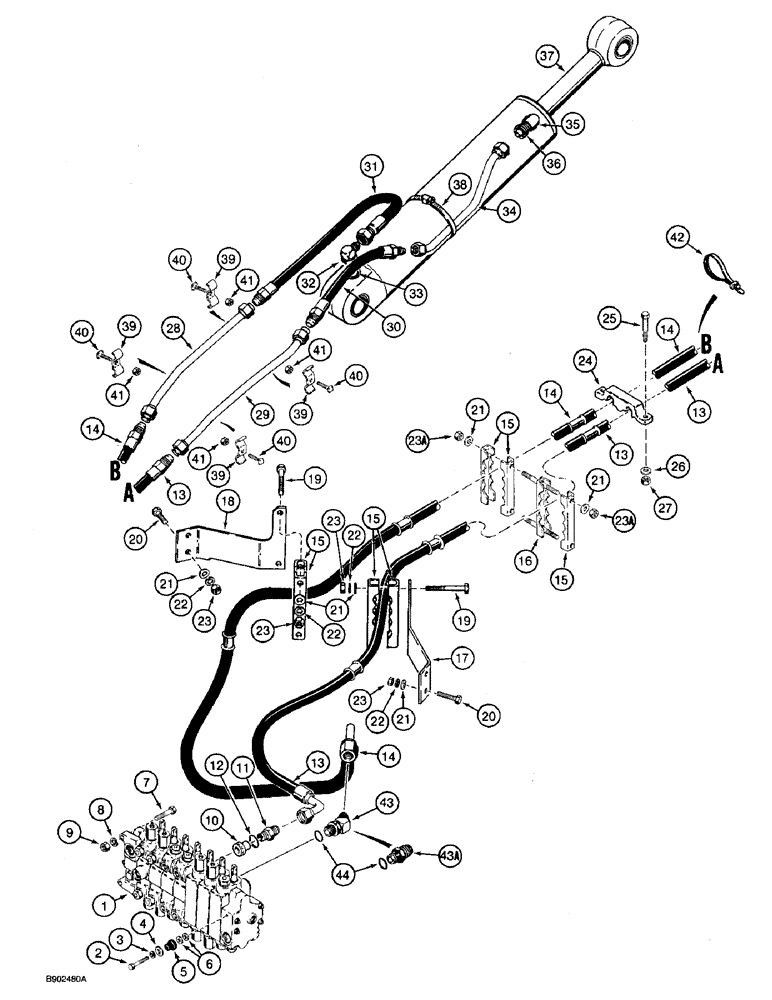

Запчасти Case 590 (8-030) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see figure 8-74 or 8-76

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

D140183

RESTRICTOR

- dipper section upper port

1шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, dipper section upper port, Includes: Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

D140120

HOSE,15.88mm ID x 1400mm L

- 1400 mm long, dipper section upper port

1шт.

14

D144803

HOSE,19.05mm ID x 1450mm L

- 1450 mm long, dipper section lower port

1шт.

15

D150465

CLAMP

- hose, metal

7шт.

16

D144915

CLAMP

- with studs, metal

1шт.

17

D144912

BRACKET

- right-hand side, support, rear hose clamps

1шт.

18

D144913

BRACKET

- left-hand side, support, rear hose clamps

1шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

12шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

23a

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

4шт.

24

D144965

CLAMP

- hose, mounts to swing tower

1шт.

25

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch (replaces 1/2 inch bolt)

2шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

27

231-1447

NUT,7/16"-14, GB

NUT, LOCK, (Replaces 1/2 inch nut) 7/16"-14, GB

2шт.

28

D144761

TUBE

- left-hand side of boom, from dipper section lower port hose

1шт.

29

D144763

TUBE

- right-hand side of boom, from dipper section upper port hose

1шт.

30

D127687

HOSE,15.88mm ID x 400mm L

- 400 mm long, at dipper cylinder rod end tube

1шт.

31

D144806

HOSE

- 750 mm long, dipper cylinder closed end

1шт.

32

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, dipper cylinder closed end, Incl. Ref. 33

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

34

D150100

TUBE

- dipper cylinder rod end

1шт.

35

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, dipper cylinder rod end, Incl. Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, for correct assembly and components, see figure 8-118 or 8-120

1шт.

38

214-14104

HOSE CLAMP,155.45mm - 177.8mm

CLAMP, HOSE, , Adj., Tube to cylinder #104, 6.12/7.00 Type F Worm

1шт.

39

D149141

CLAMP

-, Serial Range: tube-boom

4шт.

40

117-208

SQUARE BOLT,3/8" - 16 x 1", Gr 8

- square, 3/8 NC x 1 inch, grade 8

4шт.

41

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

43

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, dipper section lower port, if used

1шт.

43a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, dipper section lower port, if used dipper section lower port, if used, Incl. Ref. 44

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Ref. 43 or 43A fitting

1шт.
