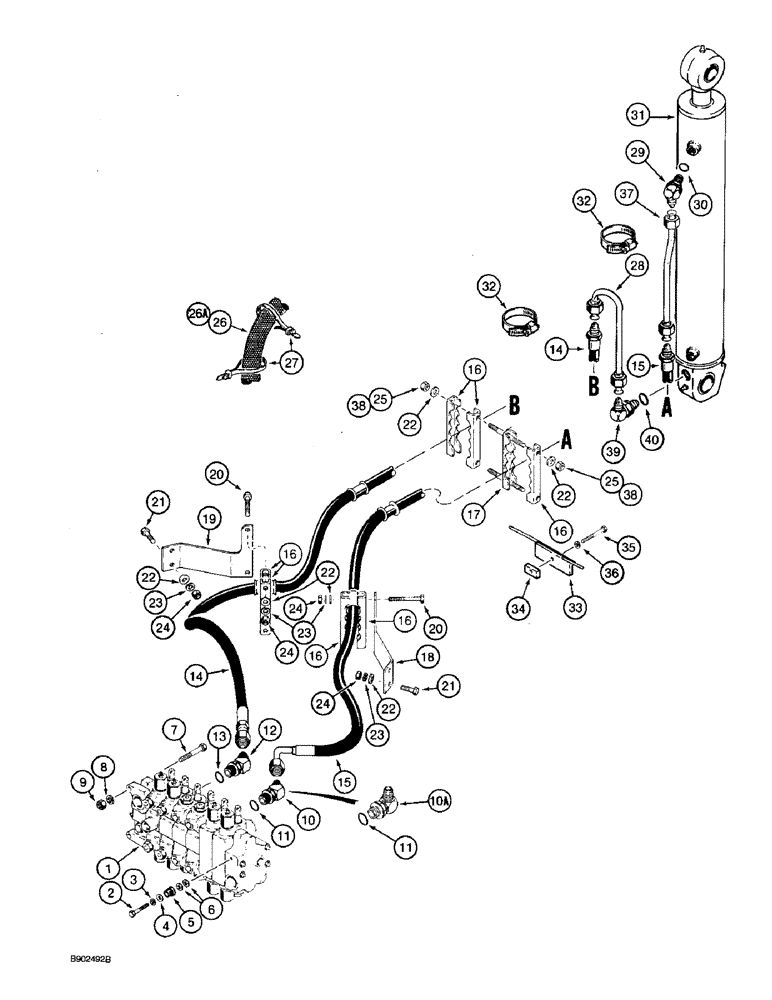

Запчасти Case 590 (8-028) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components see figure 8-74 or 8-76

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

- flat, 13/32 x 7/8 x 1/16 inch, no longer used, not required

2шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

45º, 7/8"-14 flare x 1-1/16"-12 adj. O-ring, if used

1шт.

10a

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring, if used, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Ref. 10 or 10A

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

D144800

HOSE,19.05mm ID x 1318mm L

- 1318 mm long, includes hose sleeves, boom cylinder closed end to boom section upper port

1шт.

15

D144801

HOSE,15.88mm ID x 1530mm L

- 1530 mm long, includes hose sleeves, boom cylinder rod end to boom section lower port

1шт.

16

D150465

CLAMP

- hose, metal

7шт.

17

D144915

CLAMP

- with studs, metal

1шт.

18

D144912

BRACKET

- right-hand side, support, rear hose clamps

1шт.

19

D144913

BRACKET

- left-hand side, support, rear hose clamps

1шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

12шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

25

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

4шт.

26

D134728

TUBE

SLEEVE - D144801 (item 15) hose guard

1шт.

26a

D150564

SLEEVE

- D144800 (item 14) hose guard, cut to required length from D144483 bulk sleeve

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

28

D144930

TUBE

- boom cylinder closed end

1шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 30

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

1980395C5

CYLINDER

CYLINDER ASSEMBLY - boom, for correct assembly and components, see figure 8-114

1шт.

31

1980395C6

CYLINDER

CYLINDER ASSEMBLY - boom, for correct assembly and components, see figure 8-116

1шт.

32

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

CLAMP - adjustable

2шт.

33

D140105

BRACKET

- hose guide

1шт.

34

D143425

BAR

PLATE - bracket retainer

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

36

492-11038

LOCK WASHER,3/8"

1шт.

37

D144932

TUBE

- at boom cylinder rod end

1шт.

38

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, , Models with backhoe boom lock 1/2"-13, GB, Thin

2шт.

39

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 40

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

D144483

SLEEVE

- 1250 mm long, hose guard, bulk

1шт.
