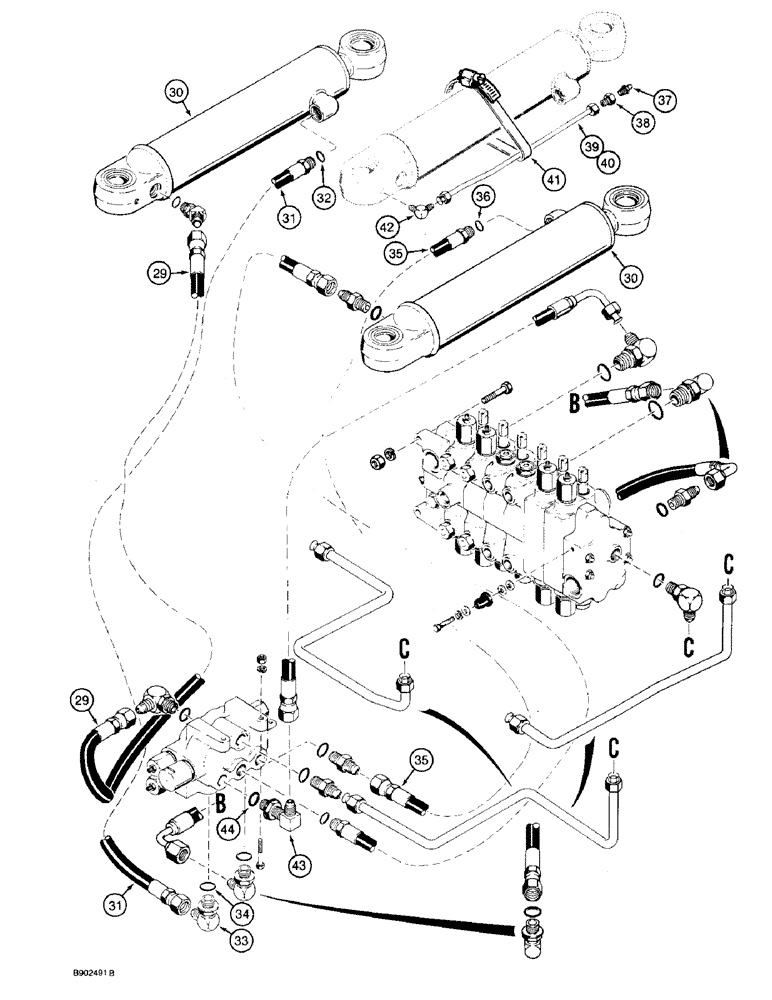

Запчасти Case 590 (8-026) - BACKHOE SWING CYLINDER AND, SWING SEQUENCE VALVE HYDRAULIC CIRCUIT(CONT) (08) - HYDRAULICS

29

D146726

HOSE

- 550 mm long, swing sequence valve to left-hand swing cylinder closed end

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components, see figure 8-110 or 8-112

2шт.

31

D143685

HOSE

- 633 mm long, swing sequence valve to left-hand swing cylinder rod end, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

D31368

HOSE

- 29-3/4 inch long, swing sequence valve to right-hand swing cylinder rod end, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

38

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch female PT, grease tube coupler

2шт.

39

D134966

TUBE

- grease, right-hand swing cylinder

1шт.

40

D134964

TUBE

- grease, left-hand swing cylinder

1шт.

41

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Grease tube to cylinder #64, 3.56/4.50 Type F Worm

2шт.

42

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT, grease tube to cylinder

2шт.

43

R20894

FITTING

ELBOW - 90 degree, Includes: Ref. 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
