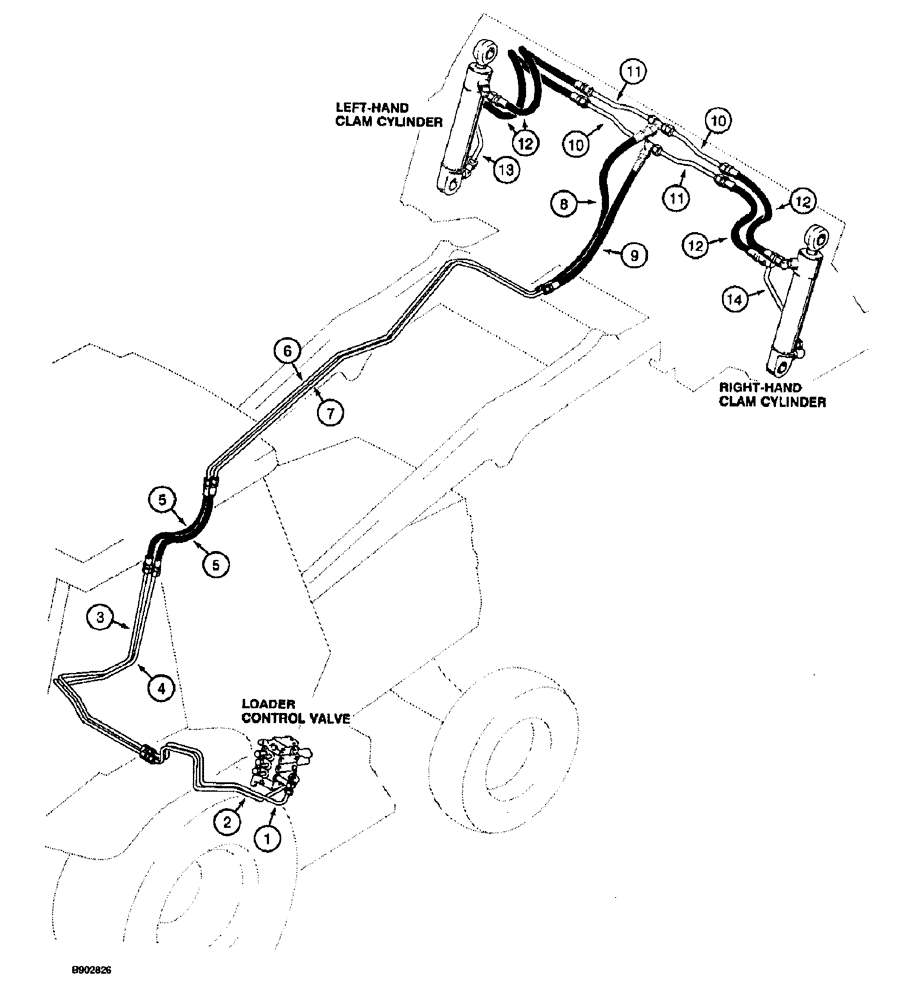

Запчасти Case 590 (1-14) - PICTORIAL INDEX, LOADER HYDRAULICS, CLAM CYLINDER (00) - PICTORIAL INDEX

1

Tube at upper port auxiliary section of loader control valve, Page 8-19

1шт.

2

Tube at lower port auxiliary section of loader control valve, Page 8-19

1шт.

3

Crossover tube from loader valve upper port tube to hose on lift arm, Page 8-19, 8-19B

1шт.

4

Crossover tube from loader valve lower port tube to hose on lift arm, Page 8-19, 8-19B

1шт.

5

Hoses at loader lift frame pivot, Page 8-19

1шт.

6

Upper tube on loader lift arm, Page 8-19B

1шт.

7

Lower tube on loader lift arm, Page 8-19B

1шт.

8

Hose to rod end of clam cylinders, Page 8-21

1шт.

9

Hose to closed end of clam cylinders, Page 8-21

1шт.

10

Horizontal tube, right-hand upper and left-hand lower, Page 8-21

1шт.

11

Horizontal tube, right-hand lower and left-hand upper, Page 8-21

1шт.

12

Hoses at right-hand and left-hand clam cylinders, Page 8-21

1шт.

13

Tube at closed end of left-hand clam cylinder, Page 8-21

1шт.

14

Tube at closed end of right-hand clam cylinder, Page 8-21

1шт.
