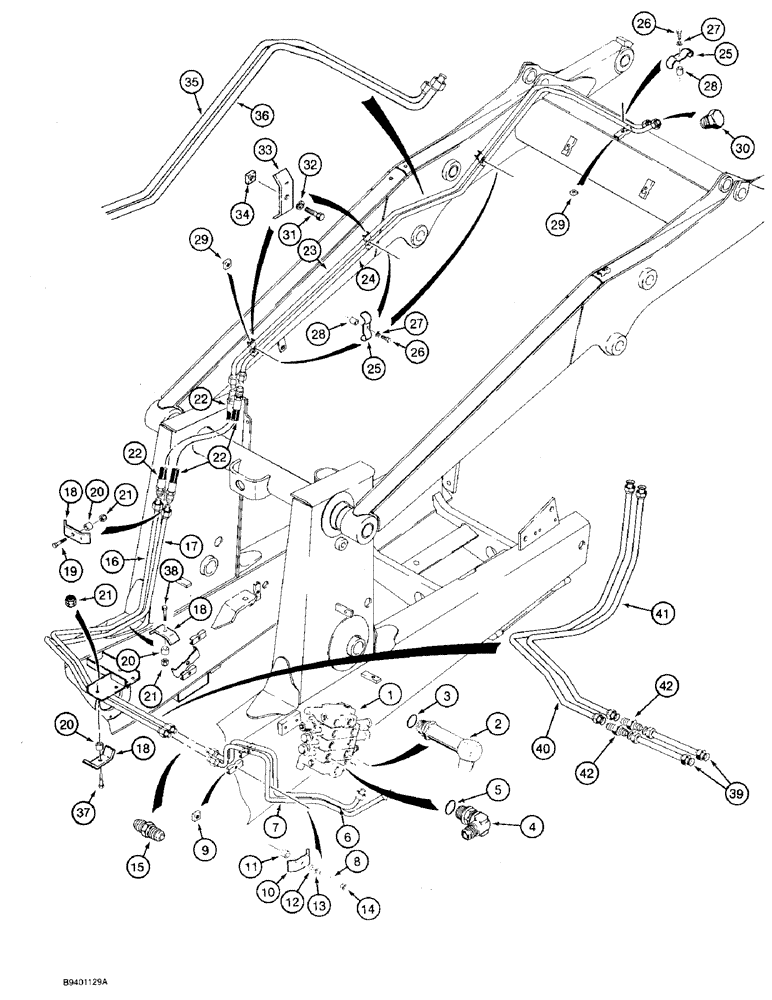

Запчасти Case 590 (8-018) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1980433C1

DISTRIBUTOR

VALVE ASSEMBLY - loader control, three-spool, parts list figure 8-60, for mounting see figure 9-2

1шт.

2

D23143

FITTING

ELBOW - 90 degree, special, lower port of valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, upper port of valve

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

D145912

TUBE

- at upper port auxiliary section of loader control valve

1шт.

7

D145916

TUBE

- at lower port auxiliary section of loader control valve

1шт.

8

R46227

STUD

- special, tube clamp to chassis bracket

1шт.

9

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

10

D143846

CLAMP

- Tube to left-hand side of chassis

1шт.

11

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- hose clamp

1шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

16

D145914

TUBE

- upper port loader valve tube to lift frame tube, Serial Range: -JJG0206623

1шт.

16a

D151097

TUBE ASSY.

TUBE - upper port loader valve tube to lift frame tube, not shown, production only, for service order (1) each of Ref. 39, D151021 tube, Ref. 40, D151027 tube and Ref. 42, 218-736 connector on figure 8-18B, Start Serial: JJG0206623

1шт.

17

D145910

TUBE

- lower port loader valve tube to lift frame tube, Serial Range: -JJG0206623

1шт.

17a

D151099

TUBE ASSY.

TUBE - lower port loader valve tube to lift frame tube, not shown, production only, for service order (1) each of Ref. 39, D151021 tube, Ref. 41, D151029 tube and Ref. 42, 218-736 connector on figure 8-19A, Start Serial: JJG0206623

1шт.

18

D138055

CLAMP

- tubes to right-hand side of chassis

3шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

20

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube

3шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

22

D125995

HOSE,12.7mm ID x 750mm L

- 750 mm long, at loader lift frame pivot

2шт.

23

D146246

PIPE

TUBE - upper, on loader lift arm, no longer available, order D150691 and D150693 tubes, Ref. 35 and 36

1шт.

24

D146248

PIPE

TUBE - lower, on loader lift arm, no longer available, order D150691 and D150693 tubes, Ref. 35 and 36

1шт.

25

D143427

CLAMP

- tube, on loader lift arm

2-4шт.

Two each used on models with horizontal tube clamp cages on inner loader lift frame arm and four each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-012 shows loader lift frame, Ref. 1 and 1A.

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2-4шт.

Two each used on models with horizontal tube clamp cages on inner loader lift frame arm and four each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-012 shows loader lift frame, Ref. 1 and 1A.

1шт.

27

492-11038

LOCK WASHER,3/8"

2-4шт.

Two each used on models with horizontal tube clamp cages on inner loader lift frame arm and four each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-012 shows loader lift frame, Ref. 1 and 1A.

1шт.

28

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 mm ID x 16 mm O.D. x 6 mm long, replaces D123539

2-4шт.

Two each used on models with horizontal tube clamp cages on inner loader lift frame arm and four each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-012 shows loader lift frame, Ref. 1 and 1A.

1шт.

29

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2-4шт.

Two each used on models with horizontal tube clamp cages on inner loader lift frame arm and four each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-012 shows loader lift frame, Ref. 1 and 1A.

1шт.

30

218-776

PLUG,7/8"-14, 37 Degree

- hex, 7/8-14 inch flare, not used on models with clam bucket, if used

2шт.

31

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

D150569

CLAMP

- tube, models with horizontal tube clamp cages on inner loader lift frame arm

2шт.

34

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

2шт.

35

D150691

TUBE ASSY.

TUBE - upper, on loader lift arm

1шт.

36

D150693

PIPE

TUBE - lower, on loader lift arm

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

38

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

39

D151021

TUBE

- straight, used with Ref. 40 or 41, and 42

2шт.

40

D151027

TUBE ASSY.

TUBE - clam section, port "A", used with Ref. 39 and 42

1шт.

41

D151029

TUBE ASSY.

TUBE - clam section, port "B", used with Ref. 39 and 42

1шт.

42

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare, used with Ref. 39, and Ref. 40 or 41

2шт.
