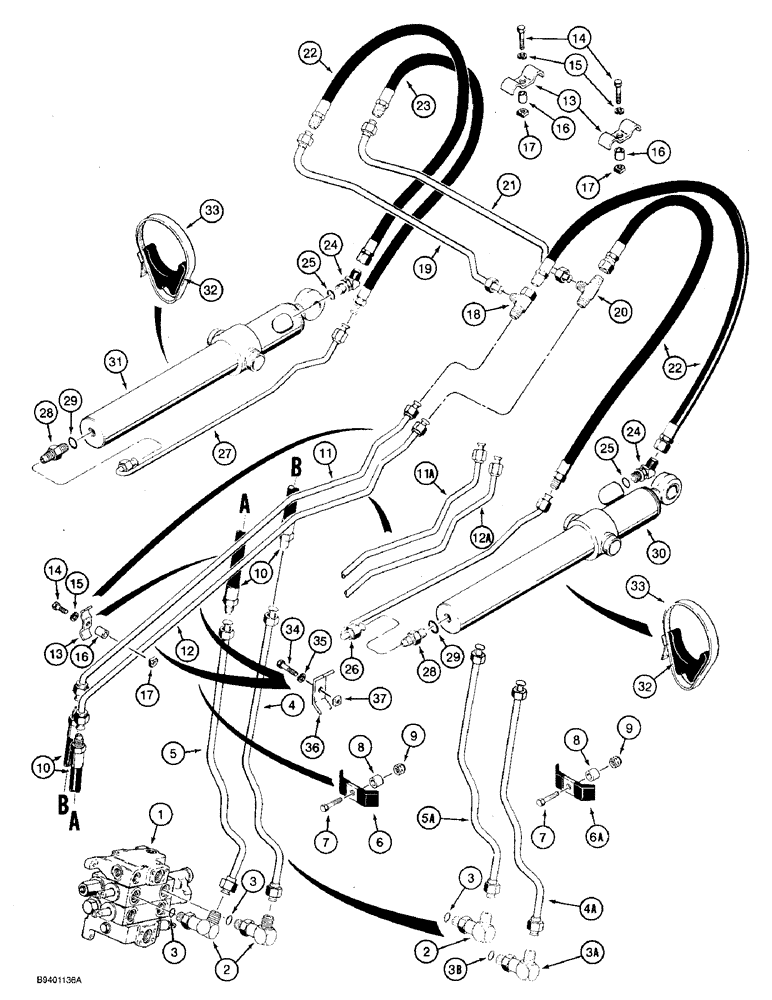

Запчасти Case 590 (8-014) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see figure 8-58 or 8-60, for mounting see figure 9-2

1шт.

2

R20894

FITTING

ELBOW - 90 degree, special, Includes: Ref. 3 (1) JJG0206623 to (2) JJG0206623

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3a

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 3B, Start Serial: JJG0206623

1шт.

3b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D147961

PIPE

TUBE - lower port of control valve, Serial Range: -JJG0206623

1шт.

4a

D150989

TUBE ASSY.

TUBE - lower port of control valve, Start Serial: JJG0206623

1шт.

5

D147963

PIPE

TUBE - upper port of control valve, Serial Range: -JJG0206623

1шт.

5a

D151079

TUBE ASSY.

TUBE - upper port of control valve, Start Serial: JJG0206623

1шт.

6

D143846

CLAMP

- Tube to chassis, Serial Range: -JJG0206623

1шт.

6a

D138055

CLAMP

- tube to chassis, Start Serial: JJG0206623

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

8

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- clamp

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

10

D125995

HOSE,12.7mm ID x 750mm L

- 750 mm long, at loader lift frame pivot

2шт.

11

D146250

PIPE

TUBE - upper, on right-hand lift arm, no longer available, order D150598 and D150600 tubes, Ref. 11A and 12A

1шт.

11a

D150598

TUBE ASSY.

TUBE - upper, on right-hand lift arm

1шт.

12

D146254

PIPE

TUBE - lower, on right-hand lift arm, no longer available, order D150598 and D150600 tubes, Ref. 11A and 12A

1шт.

12a

D150600

TUBE ASSY.

TUBE - lower, on right-hand lift arm

1шт.

13

D143427

CLAMP

- tubes to lift arm

3-5шт.

Three each on models with horizontal tube clamp cages on inner loader lift frame arm and five each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-12 shows loader lift frame, items 1 and 1A.

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3-5шт.

Three each on models with horizontal tube clamp cages on inner loader lift frame arm and five each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-12 shows loader lift frame, items 1 and 1A.

1шт.

15

492-11038

LOCK WASHER,3/8"

3-5шт.

Three each on models with horizontal tube clamp cages on inner loader lift frame arm and five each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-12 shows loader lift frame, items 1 and 1A.

1шт.

16

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 O.D. x 6 mm long, plated

3-5шт.

Three each on models with horizontal tube clamp cages on inner loader lift frame arm and five each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-12 shows loader lift frame, items 1 and 1A.

1шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

3-5шт.

Three each on models with horizontal tube clamp cages on inner loader lift frame arm and five each on models with vertical tube clamp cages on inner loader lift frame arm. Figure 9-12 shows loader lift frame, items 1 and 1A.

1шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x adj. straight thread, at upper lift frame crossover tube

1шт.

19

D146552

PIPE

TUBE - lower, crossover, at upper lift frame, to rod end of bucket cylinders

1шт.

20

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare, at upper lift frame crossover tube

1шт.

21

D146550

PIPE

TUBE - upper, crossover, at upper lift frame, to closed end of bucket cylinders

1шт.

22

D131497

HOSE,12.7mm ID x 725mm L

- 725 mm long, to rod end of left-hand and right-hand bucket cylinders and to closed end of right-hand bucket cylinder

3шт.

23

D125995

HOSE,12.7mm ID x 750mm L

- 750 mm long, to closed end of left-hand bucket cylinder

1шт.

24

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D127940

PIPE

TUBE - to closed end of right-hand bucket cylinder

1шт.

27

D127942

PIPE

TUBE - to closed end of left-hand bucket cylinder

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, right-hand, for correct assembly and components, see figure 8-104 or 8-105A

1шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, left-hand, for correct assembly and components, see figure 8-104 or 8-105A

1шт.

32

D38648

BLOCK

INSULATOR - rubber, tube clamp

2шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Tube to cylinder #64, 3.56/4.50 Type F Worm

2шт.

34

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

D150569

CLAMP

- tube, models with horizontal tube clamp cages on inner loader lift frame arm

2шт.

37

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

2шт.
