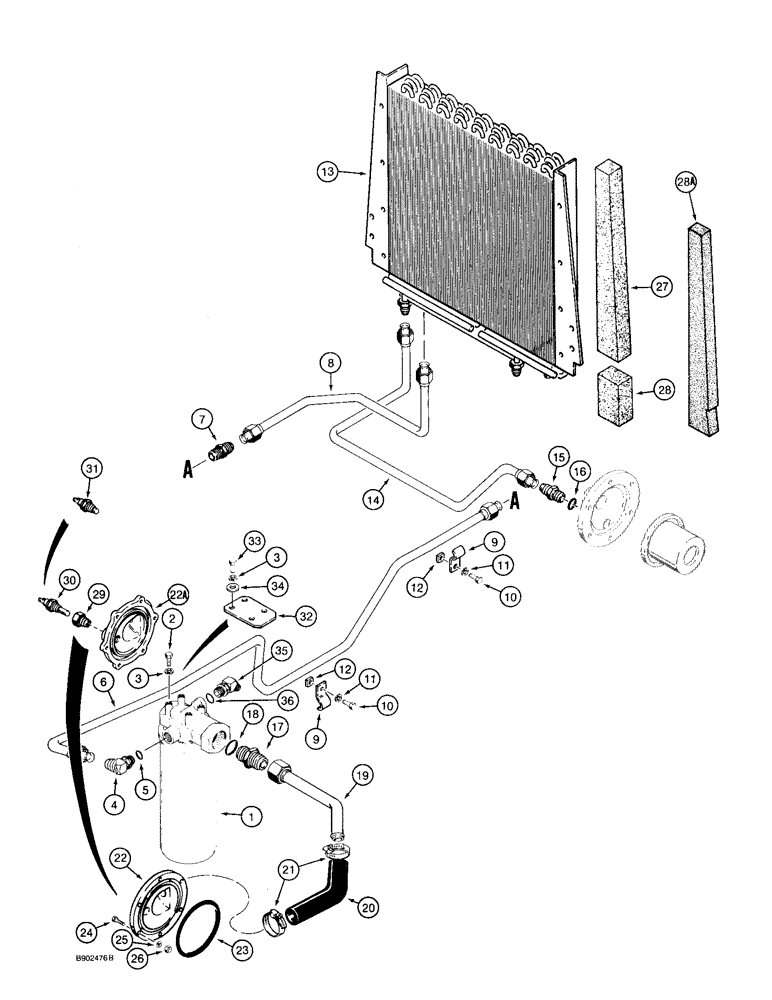

Запчасти Case 590 (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES, AND FILTER (08) - HYDRAULICS

1

D150888

FILTER

ASSEMBLY - hydraulic oil, parts list figure 8-98

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used on models without spacer plate, Ref. 32 on Figure 8-10 Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

D145954

TUBE ASSY.

TUBE - oil filter to cooler inlet tube

1шт.

7

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

1шт.

8

D148259

TUBE ASSY.

TUBE - cooler inlet

1шт.

9

D143430

CLAMP

- tube

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

13

REF

INSTRUCTION

COOLER - oil, power shuttle and equipment hydraulic oil, see figure 6-4 for oil cooler options and mounting hardware

1шт.

14

D148261

TUBE

- cooler, Serial Range: return-reservoir

1шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8-12 inch O-ring, return to tank, Includes: Ref. 18

1шт.

18

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

19

D150518

TUBE

- return to tank (replaces D145944 tube)

1шт.

20

D146034

HOSE

- 25 ID x 35 OD x 102 mm long, return, at tank inlet

1шт.

21

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

22

D125694

FLANGE

- reservoir, return, models without auxiliary hydraulics for optional rear hydraulic attachments

1шт.

22a

D139268

SHOULDER

FLANGE - reservoir, return, models with auxiliary hydraulics for optional rear hydraulic attachments, used with Ref. 29 and 30 on figure 8-10

1шт.

23

238-5425

O-RING,0.275" Thk x 4.475" ID, -425, Cl 5, 75 Duro

- reservoir return flange (replaces T53326)

1шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

27

D140840

FOAM

BAFFLE - base size is 2-3/16 (55) x 17-3/4 inch (450 mm) high, cut from D92228 bulk pad, see below, no longer available, replaced by 111996A1, Ref. 28A

2шт.

These baffles are shown installed next to the oil cooler on models without air conditioner. On models with air conditioner they are installed next to the condenser coil and also require additional baffle, item 3A on Figure 9-136

1шт.

28

D140841

FOAM

BAFFLE - base size is 2-3/8 (60) x 3-15/16 inch (100 mm) high, cut from D92228 bulk pad, see below, no longer available, replaced by 111996A1, Ref. 28A

2шт.

These baffles are shown installed next to the oil cooler on models without air conditioner. On models with air conditioner they are installed next to the condenser coil and also require additional baffle, item 3A on Figure 9-136

1шт.

28a

111996A1

BAFFLE

- base size is 3-3/16 (81) x 24-39/64 inch (625 mm) high, cut from D92228 bulk pad, see below

2шт.

29

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female, used with

1шт.

30

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

- oil temperature, attaches to main harness, used with Ref. 29 reducer, no longer used, order 1345488C2 switch, Ref. 31and remove 221-1088 Ref. 29 reducer

1шт.

31

1345488C2

PRESSURE SWITCH

SWITCH - 225 degree, oil temperature, attaches to main harness (replaces 1345488C1, 235 degree switch)

1шт.

32

D150794

SPACER

PLATE - spacer, filter

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

35

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 deg, 3/4-16 flare x 9/16-18 inch adj O-ring boss, replaces Ref. 36 and 47 adapter and elbow on figure 5-6, Includes: Ref. 36

1шт.

D92228

BAFFLE

- bulk pad, 900 x 1400 x 38 mm

1шт.

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surfaces (purchase locally)

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
