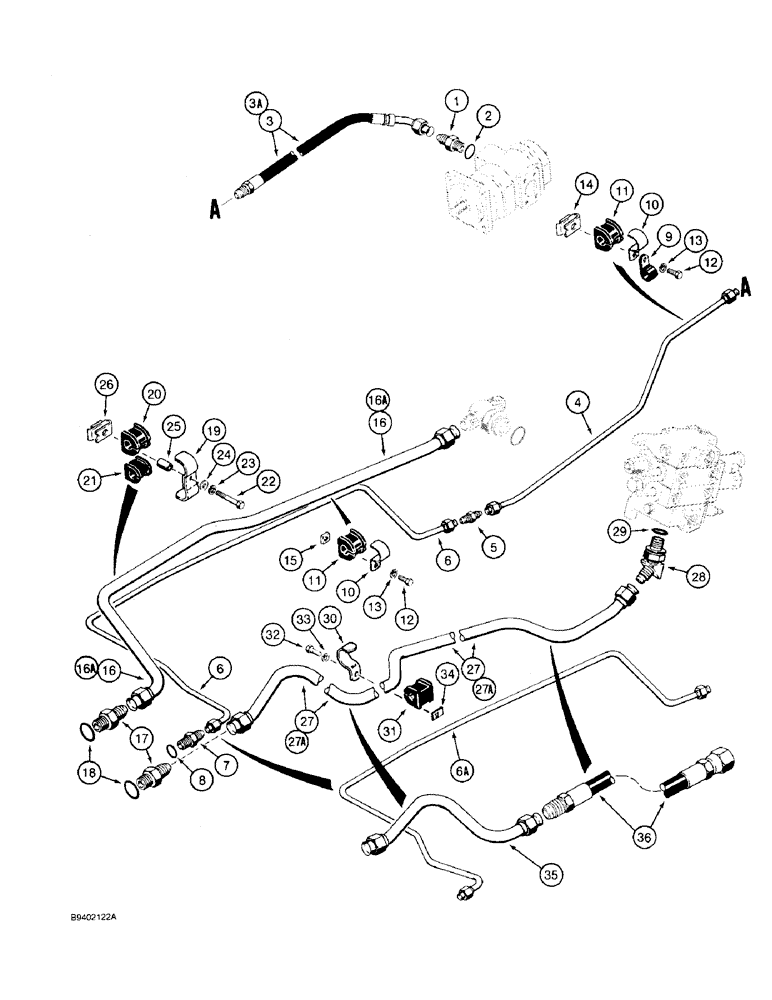

Запчасти Case 590 (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO BACKHOE (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, small pump section outlet port, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

D140802

HOSE

- 513 mm long, small pump section outlet port, used with D149268 pump, if used

1шт.

3a

107486A1

HOSE

- 700 mm long, small pump section outlet port, used with 103621A1 pump, if used

1шт.

4

D149121

TUBE

- small pump section hose to backhoe swing section inlet tube

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

1шт.

6

D146225

TUBE

- to backhoe control valve swing section inlet, Serial Range: -JJG0206178

1шт.

6a

D150834

TUBE

- to backhoe control valve swing section inlet, Start Serial: JJG0206178

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

- tube, lower

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

- backhoe valve swing section inlet and return tubes

2шт.

11

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, tube

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

D122307

NUT

NUT - U-type, 3/8 inch NC, special

1шт.

15

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

16

D150483

TUBE

- backhoe return to filter, used with 6 spool backhoe control valve (replaces D145709 tube)

1шт.

16a

D150488

TUBE

- backhoe return to filter, used with 7 spool backhoe control valve (replaces D145711 tube)

1шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 18

2шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

D143422

SHIN

CLAMP - double tube

1шт.

20

D67297

BLOCK

INSULATOR - 1 inch, backhoe return tube

1шт.

21

D143797

SHOCK ABSORBER

INSULATOR - 5/8 inch, backhoe swing section inlet tube

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

25

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- tube clamp

1шт.

26

D122307

NUT

NUT - U-type, 3/8 inch NC, special

1шт.

27

D149751

PIPE

TUBE - loader valve power beyond, to backhoe inlet section, 2 spool valve, production only, for service order Ref. 35, 122426A1, tube and Ref. 36, 122427A1, hose

1шт.

27a

D150478

TUBE ASSY.

TUBE - loader valve power beyond, to backhoe inlet section, 3 spool valve, production only, for service order Ref. 35, 122426A1, tube and Ref. 36, 122427A1, hose

1шт.

28

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj. O-ring boss, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- power beyond tube

1шт.

31

D67297

BLOCK

INSULATOR - 5/8 inch, tube

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

D122307

NUT

NUT - U-type, 3/8 inch NC, special

1шт.

35

122426A1

TUBE

- loader valve power beyond, to backhoe inlet section, service replacement, used with Ref. 36, hose

1шт.

36

122427A1

HOSE ASSY.

HOSE - 1320 mm long, loader valve power beyond, to backhoe inlet section, service replacement, used with Ref. 35, tube

1шт.
