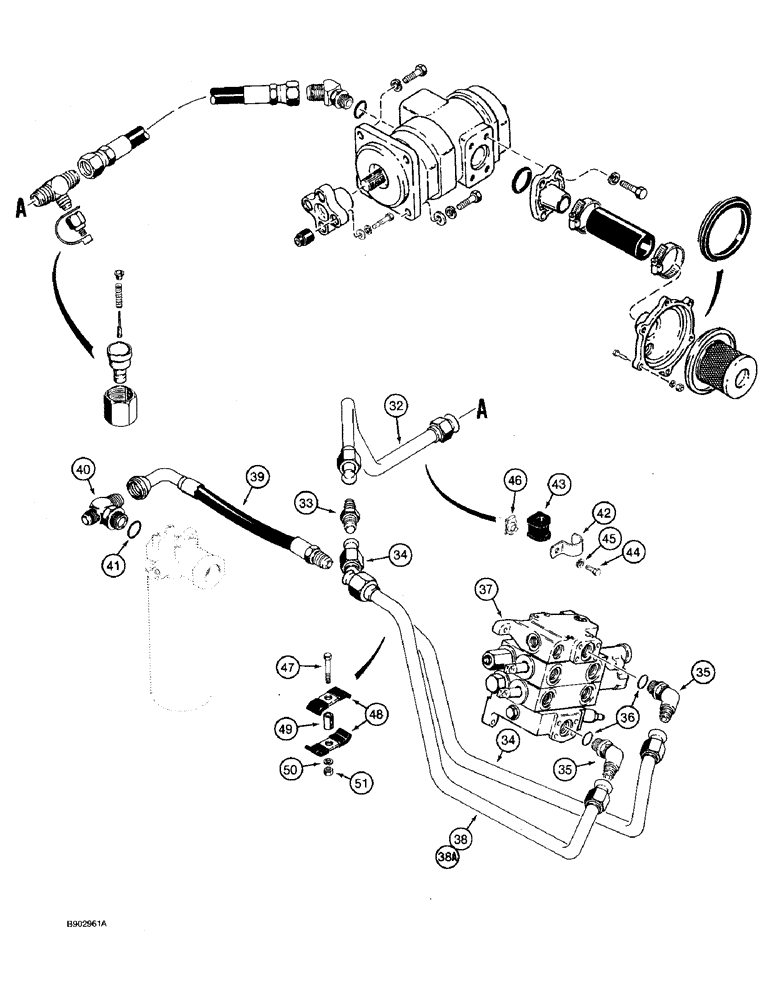

Запчасти Case 590 (8-004) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER (CONT) (08) - HYDRAULICS

32

D151009

TUBE

- pump outlet, hose to loader valve (replaces D149123)

1шт.

33

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, 1-5/16-12 inch flare

1шт.

34

D145940

TUBE

- pump outlet, at loader valve inlet

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj. O-ring boss, Incl. Ref. 36

2шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

37

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see figure 8-58 or 8-60

1шт.

38

D149754

TUBE

- loader return, at loader valve outlet, 2 spool valve

1шт.

38a

D145942

TUBE ASSY.

TUBE - loader return, at loader valve outlet, 3 spool valve

1шт.

39

D146132

HOSE ASSY.

HOSE - 405 mm long, loader return, loader valve, Serial Range: outlet-filter

1шт.

40

218-5197

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

- 1-5/16-12 adj O-ring branch x fl x 1-1/16-12 inch fl, at hydraulic oil filter fitting, Includes: Ref. 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

42

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- 1 inch, loader valve inlet tube

1шт.

43

D67297

BLOCK

INSULATOR - tube

1шт.

44

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

45

492-11038

LOCK WASHER,3/8"

1шт.

46

D122307

NUT

NUT - U-type, 3/8 inch NC, special

1шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

48

D143846

CLAMP

- Tube

2шт.

49

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- tube clamp

1шт.

50

492-11038

LOCK WASHER,3/8"

1шт.

51

425-106

NUT,3/8"-16, Cl 5

1шт.
