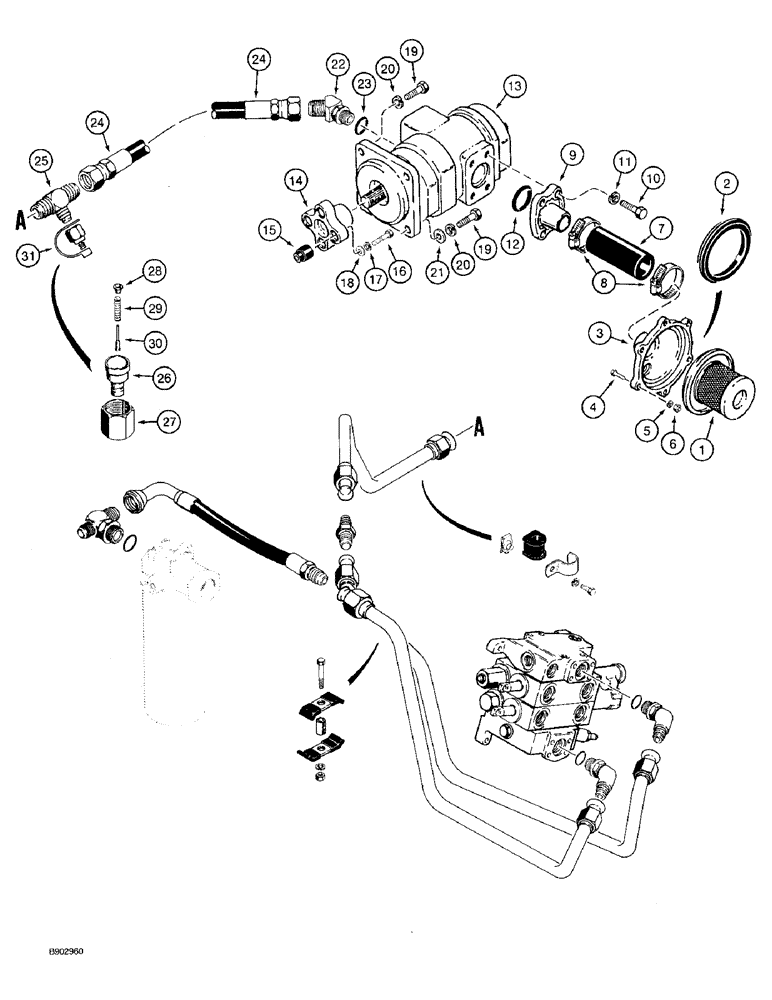

Запчасти Case 590 (8-002) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER (08) - HYDRAULICS

1

D145017

STRAINER ASSY.

SCREEN - suction, Includes: Ref. 2

1шт.

2

D145356

SEAL,107.7mm ID x 125.48mm OD x 13.72mm Thk

SEAL - suction screen

1шт.

3

D129581

FLANGE

- reservoir, suction

1шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

7

D129580

HOSE

1.5 inch ID x 2.12 inch O.D. x 130 mm long, equipment pump inlet, cut to required length from P/N D129185 bulk hose

1шт.

8

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

9

D137343

FLANGE

- pump inlet

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1-7/8 x 2-1/8 inch, pump inlet flange (replaces A14515)

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, equipment, see figure 8-56 or 8-57A for correct assembly and components parts

1шт.

D136083

COUPLING

- flex, hydraulic pump, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COUPLING - pump

1шт.

15

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

- coupling

4шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

17

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, hardened

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

D78732

WASHER

- flat, 1/2 inch, hardened, special, lower mounting bolts only, if used

2шт.

22

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj. O-ring boss, large pump section outlet port, Includes: Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

24

D149036

HOSE,19.05mm ID x 940mm L

- 940 mm long, large pump section outlet port

1шт.

25

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING Assy - quick disconnect, Includes Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

27

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4 inch NF

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - coupling

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - coupling

1шт.

31

H434163

DUST CAP

CAP - dust, coupling

1шт.

D129185

HOSE,38.1 mm ID x 863.60 mm

1шт.
