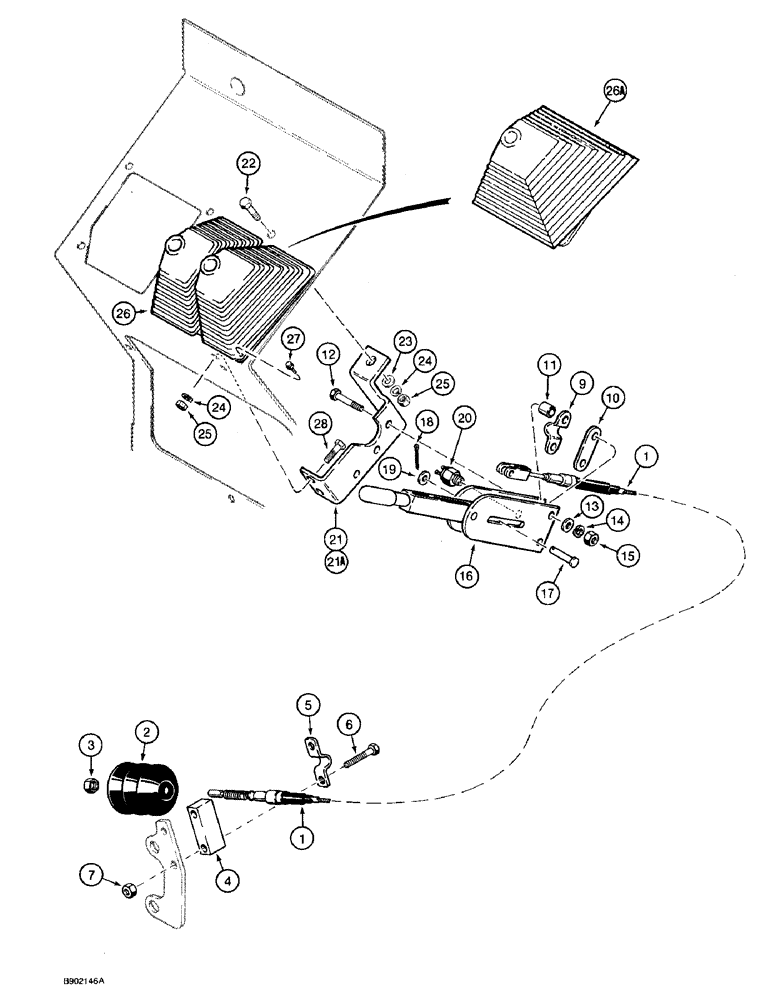

Запчасти Case 590 (7-12) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

1

D145877

CABLE

- parking brake

1шт.

2

D141049

BOOT

- parking brake cable

1шт.

3

829-1112

JAM NUT

- hex, jam, 12 mm - 1.75

1шт.

4

A188027

SPACER

BLOCK - spacer, brake cable mounting

1шт.

5

A188028

CLAMP

- cable, rear

1шт.

6

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

D121608

CLAMP

- parking brake cable

1шт.

10

D129747

PLATE

- oval spacer, plated

1шт.

11

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

- parking brake lever, front

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

D121555

LEVER ASSY.

LEVER ASSEMBLY - parking brake, without bossed hole for audible warning alarm parking brake switch, for service order D139909, Includes: Ref. 16 - 19

1шт.

D139909

LEVER ASSY.

LEVER ASSEMBLY - parking brake, with bossed hole for brake switch, replaces D121555 lever for service, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

17

D42458

PIN

- clevis, lever to brake cable

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

20

D136514

SWITCH

- parking brake, used on models with audible warning alarm

1шт.

See Figure 4-50 for other special parts used on models with audible warning alarm for water temperature, engine oil pressure, and parking brake.

1шт.

21

D146905

SUPPORT

BRACKET - mounting, parking brake lever, with 7/16 inch mounting hole for front drive axle control lever mounting, Ref. 5 and 12 on figure 6-28, if used

1шт.

21a

102446A1

BRACKET

- mounting, parking brake lever, with 1/2 inch mounting hole for front drive axle control lever mounting, Ref. 24 and 25 on figure 6-28, if used

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

D137465

BOOT

- dual lever, parking brake and shift control levers, use on models with four wheel drive front axle, see figure 6-28 for shift control lever

1шт.

26a

D137466

BOOT

- single lever, use on models with two wheel drive front axle

1шт.

27

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

28

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.
