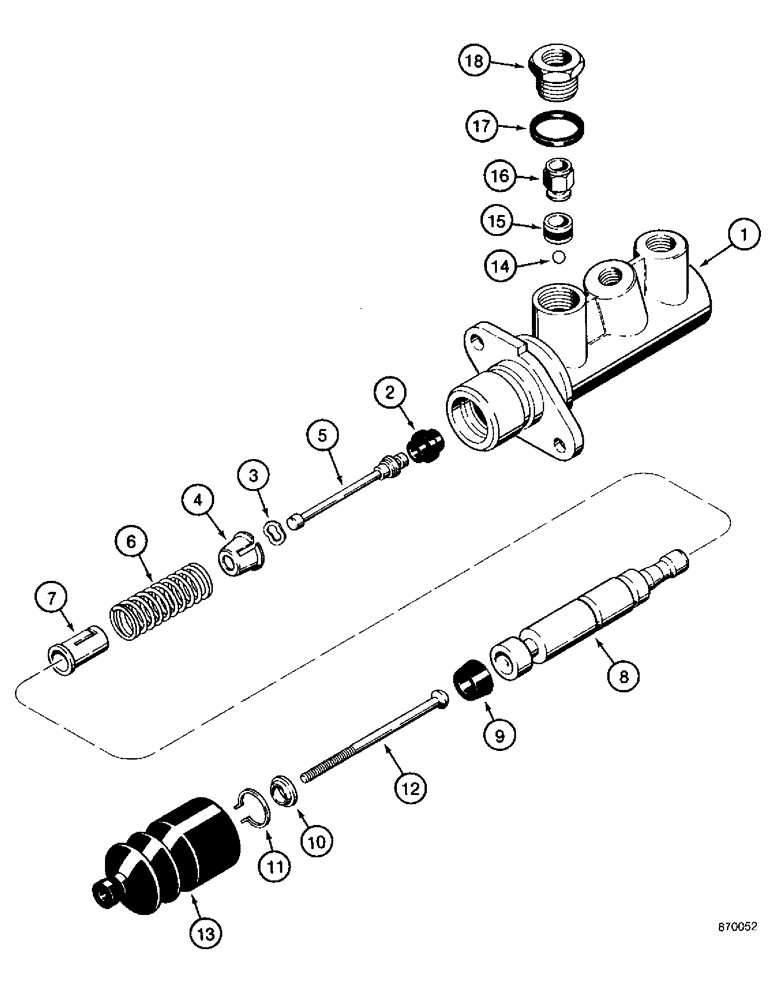

Запчасти Case 590 (7-10) - BRAKE MASTER CYLINDER (07) - BRAKES

D143162

MASTER CYLINDER

CYLINDER ASSEMBLY - master, Includes: Ref. 1 - 18

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - plunger

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - spring, short

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring, long

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - seal, special

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining, washer

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - push

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - push rod

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

14

NSS

NOT SOLD SEPARAT

BALL - flow valve

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - flow

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - flow valve

1шт.

Part of seal service cylinder kit P/N N14784.

1шт.

18

NSS

NOT SOLD SEPARAT

ADAPTER - flow valve

1шт.

N14784

KIT

- cylinder, service, seal, Includes: Ref. 2, 3, 9, 11, 13 - 15 and 17

1шт.
